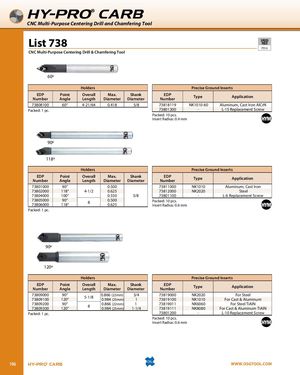

List 738
CNC Multi-Purpose Centering Drill & Chamfering Tool
SPEED FEED P314
60º Holders Precise Ground Inserts
| EDP | Point | Overall | Max. | Shank | EDP | Type | Application | |||||
| Number | Angle | Length | Diameter | Diameter | Number | |||||||
| 73808100 | 60° | 4-21/64 | 0.418 | 5/8 | 73818119 | NK1010-60 | Aluminum, Cast Iron AlCrN | |||||
| Packed: 1 pc. | 73801300 | - | L-15 Replacement Screw |
Packed: 10 pcs. Insert Radius: 0.4 mm
90º
118º Holders Precise Ground Inserts
| EDP | Point | Overall | Max. | Shank | EDP | Type | Application | |||||
| Number | Angle | Length | Diameter | Diameter | Number | |||||||
| 73801000 | 90° | 0.500 | 73811000 | NK1010 | Aluminum, Cast Iron | |||||||
| 73802000 | 118° | 4-1/2 | 0.625 | 73812000 | NK2020 | Steel | ||||||
| 73804000 | 100° | 0.550 | 5/8 | 73801100 | - | L-6 Replacement Screw | ||||||
| 73805000 | 90° | 8 | 0.500 | Packed: 10 pcs. | ||||||||
| 73806000 | 118° | 0.625 | Insert Radius: 0.6 mm |
Packed: 1 pc.
90º
120º Holders Precise Ground Inserts
| EDP | Point | Overall | Max. | Shank | EDP | Type | Application | |||||
| Number | Angle | Length | Diameter | Diameter | Number | |||||||
| 73809000 | 90° | 5-1/8 | 0.866 (22mm) | 3/4 | 73819000 | NK2020 | For Steel | |||||
| 73809100 | 120° | 0.984 (25mm) | 1 | 73819100 | NK1010 | For Cast & Aluminum | ||||||
| 73809200 | 90° | 0.866 (22mm) | 1 | 73819011 | NK6060 | For Steel TiAlN | ||||||
| 73809300 | 120° | 8 | 0.984 | 1-1/4 | ||||||||
| (25mm) | 73819111 | NK8080 | For Cast & Aluminum TiAlN | |||||||||
| Packed: 1 pc. | 73801200 | - | L-10 Replacement Screw |
Packed: 10 pcs. Insert Radius: 0.6 mm
