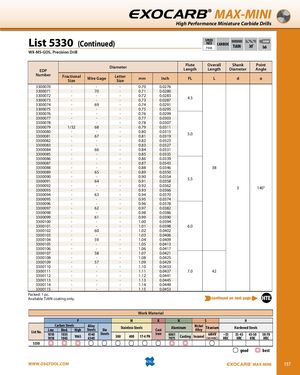

EXOCARB ® MAX-MINI High Performance Miniature Carbide Drills List 5330 (Continued) SPEED FEED P308 CARBIDE TiAIN 30˚ WX-MS-GDS, Precision Drill Flute Overall Shank Point Diameter EDP Length Length Diameter Angle Number Fractional Letter Wire Gage mm Inch FL L d α Size Size 3300070 - - - 0.70 0.0276 3300071 - 70 - 0.71 0.0280 3300072 - - - 0.72 0.0283 4.5 3300073 - - - 0.73 0.0287 3300074 - 69 - 0.74 0.0291 3300075 - - - 0.75 0.0295 3300076 - - - 0.76 0.0299 3300077 - - - 0.77 0.0303 3300078 - - - 0.78 0.0307 3300079 1/32 68 - 0.79 0.0311 3300080 - - - 0.80 0.0315 5.0 3300081 - 67 - 0.81 0.0319 3300082 - - - 0.82 0.0323 3300083 - - - 0.83 0.0327 3300084 - 66 - 0.84 0.0331 3300085 - - - 0.85 0.0335 3300086 - - - 0.86 0.0339 3300087 - - - 0.87 0.0343 3300088 - - - 0.88 0.0346 38 3300089 - 65 - 0.89 0.0350 3300090 - - - 0.90 0.0354 5.5 3300091 - 64 - 0.91 0.0358 3300092 - - - 0.92 0.0362 3 140° 3300093 - - - 0.93 0.0366 3300094 - 63 - 0.94 0.0370 3300095 - - - 0.95 0.0374 3300096 - - - 0.96 0.0378 3300097 - 62 - 0.97 0.0382 3300098 - - - 0.98 0.0386 3300099 - 61 - 0.99 0.0390 3300100 - - - 1.00 0.0394 3300101 - - - 1.01 0.0398 6.0 3300102 - 60 - 1.02 0.0402 3300103 - - - 1.03 0.0406 3300104 - 59 - 1.04 0.0409 3300105 - - - 1.05 0.0413 3300106 - - - 1.06 0.0417 3300107 - 58 - 1.07 0.0421 3300108 - - - 1.08 0.0425 3300109 - 57 - 1.09 0.0429 3300110 - - - 1.10 0.0433 3300111 - - - 1.11 0.0437 7.0 42 3300112 - - - 1.12 0.0441 3300113 - - - 1.13 0.0445 3300114 - - - 1.14 0.0449 3300115 - - - 1.15 0.0453 Packed: 1 pc. Available TiAlN coating only. Work Material P M K N S H Carbon Steels Alloy Nickel Titanium Steels Stainless Steels Aluminum Alloy Hardened Steels List No. Low Med. High Die Cast Steels Iron 1010 1018 1035 1045 1065 4140 4340 300 400 17-4 PH 6061 7075 Casting Inconel 6Al4V (30 HRC) ~35 HRC 35-45 HRC 45-50 HRC 50-70 HRC 5330 good best WWW.OSGTOOL.COM EXOCARB® MAX-MINI 157
