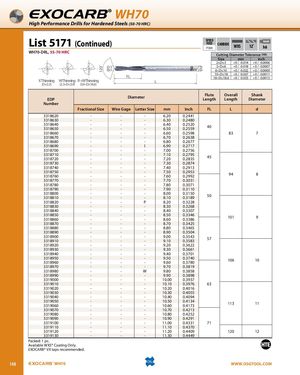

Общий каталог OSG 2018 - 2019 - страница 148
Навигация
Общий каталог OSG русский
Общий каталог Somta
EXOCARB® WH70
Высокопроизводительные сверла для закаленных сталей (50–70 HRC)
Каталог 5171 (продолжение)
WH70-DRL, 55–70 HRC
Допуски диаметра резания (h8)
| Размер | мм | дюйм |
|---|---|---|
| 2 ≤ D ≤ 3 | +0 / –0.014 | +0 / –0.0006 |
| 3 < D ≤ 6 | +0 / –0.018 | +0 / –0.0007 |
| 6 < D ≤ 10 | +0 / –0.022 | +0 / –0.0009 |
| 10 < D ≤ 18 | +0 / –0.027 | +0 / –0.0011 |
| 18 < D ≤ 18.6 | +0 / –0.033 | +0 / –0.0013 |
| Номер EDP | Дробный размер | Номер по проволоке | Буквенный размер | Диаметр, мм | Диаметр, дюйм | Длина спирали (FL) | Общая длина (L) | Диаметр хвостовика (d) |
|---|---|---|---|---|---|---|---|---|
| 3318620 | – | – | – | 6.20 | 0.2441 | 40 | 83 | 7 |
| 3318630 | – | – | – | 6.30 | 0.2480 | |||
| 3318640 | – | – | – | 6.40 | 0.2520 | |||
| 3318650 | – | – | – | 6.50 | 0.2559 | |||
| 3318660 | – | – | – | 6.60 | 0.2598 | |||
| 3318670 | – | – | – | 6.70 | 0.2638 | 45 | ||
| 3318680 | – | – | – | 6.80 | 0.2677 | |||
| 3318690 | – | – | I | 6.90 | 0.2717 | |||
| 3318700 | – | – | – | 7.00 | 0.2756 | |||
| 3318710 | – | – | – | 7.10 | 0.2795 | |||
| 3318720 | – | – | – | 7.20 | 0.2835 | |||
| 3318730 | – | – | – | 7.30 | 0.2874 | |||
| 3318740 | – | – | – | 7.40 | 0.2913 | |||
| 3318750 | – | – | – | 7.50 | 0.2953 | |||
| 3318760 | – | – | – | 7.60 | 0.2992 | |||
| 3318770 | – | – | – | 7.70 | 0.3031 | 50 | 94 | 8 |
| 3318780 | – | – | – | 7.80 | 0.3071 | |||
| 3318790 | – | – | – | 7.90 | 0.3110 | |||
| 3318800 | – | – | – | 8.00 | 0.3150 | |||
| 3318810 | – | – | – | 8.10 | 0.3189 | |||
| 3318820 | – | – | P | 8.20 | 0.3228 | |||
| 3318830 | – | – | – | 8.30 | 0.3268 | |||
| 3318840 | – | – | – | 8.40 | 0.3307 | |||
| 3318850 | – | – | – | 8.50 | 0.3346 | |||
| 3318860 | – | – | – | 8.60 | 0.3386 | |||
| 3318870 | – | – | – | 8.70 | 0.3425 | |||
| 3318880 | – | – | – | 8.80 | 0.3465 | |||
| 3318890 | – | – | – | 8.90 | 0.3504 | |||
| 3318900 | – | – | – | 9.00 | 0.3543 | 57 | 101 | 9 |
| 3318910 | – | – | – | 9.10 | 0.3583 | |||
| 3318920 | – | – | – | 9.20 | 0.3622 | |||
| 3318930 | – | – | – | 9.30 | 0.3661 | |||
| 3318940 | – | – | – | 9.40 | 0.3701 | |||
| 3318950 | – | – | – | 9.50 | 0.3740 | |||
| 3318960 | – | – | – | 9.60 | 0.3780 | |||
| 3318970 | – | – | – | 9.70 | 0.3819 | |||
| 3318980 | – | – | W | 9.80 | 0.3858 | |||
| 3318990 | – | – | – | 9.90 | 0.3898 | |||
| 3319000 | – | – | – | 10.00 | 0.3937 | |||
| 3319010 | – | – | – | 10.10 | 0.3976 | 63 | ||
| 3319020 | – | – | – | 10.20 | 0.4016 | |||
| 3319030 | – | – | – | 10.30 | 0.4055 | |||
| 3319040 | – | – | – | 10.40 | 0.4094 | |||
| 3319050 | – | – | – | 10.50 | 0.4134 | |||
| 3319060 | – | – | – | 10.60 | 0.4173 | |||
| 3319070 | – | – | – | 10.70 | 0.4213 | |||
| 3319080 | – | – | – | 10.80 | 0.4252 | |||
| 3319090 | – | – | – | 10.90 | 0.4291 | |||
| 3319100 | – | – | – | 11.00 | 0.4331 | 71 | ||
| 3319110 | – | – | – | 11.10 | 0.4370 | |||
| 3319120 | – | – | – | 11.20 | 0.4409 | 120 | 12 | |
| 3319130 | – | – | – | 11.30 | 0.4449 |
Упаковка: 1 шт.
Доступно только с покрытием WXS®
Рекомендуются метчики EXOCARB® VX
