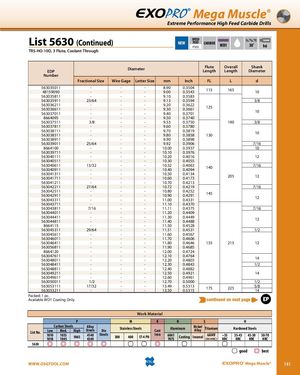

Общий каталог OSG 2018 - 2019 - страница 141
Навигация
Общий каталог OSG русский
Общий каталог Somta
Mega Muscle®
Сверла из карбида с экстремальной производительностью и высокой подачей
Лист 5630 (продолжение)
Трёхзубое сверло с подводом СОЖ TRS-HO-10D
| Артикул | Размер дроби | Калибр | Буквенный размер | Диаметр (мм) | Диаметр (дюйм) | Длина зубьев (FL) | Общая длина (L) | Диаметр хвостовика (d) |
|---|---|---|---|---|---|---|---|---|
| 563035011 | – | – | – | 8.90 | 0.3504 | 115 | 165 | 10 |
| 48159090 | – | – | – | 9.00 | 0.3543 | – | – | – |
| 563035811 | – | – | – | 9.10 | 0.3583 | – | – | – |
| 563035911 | 23/64 | – | – | 9.13 | 0.3594 | – | – | 3/8 |
| 563036211 | – | – | – | 9.20 | 0.3622 | 125 | – | – |
| 563036611 | – | – | – | 9.30 | 0.3661 | – | – | 10 |
| 563037011 | – | – | – | 9.40 | 0.3701 | – | – | – |
| 8664095 | – | – | – | 9.50 | 0.3740 | – | – | – |
| 563037511 | 3/8 | – | – | 9.53 | 0.3750 | – | 190 | 3/8 |
| 563037811 | – | – | – | 9.60 | 0.3780 | – | – | – |
| 563038111 | – | – | – | 9.70 | 0.3819 | – | – | 10 |
| 563038511 | – | – | – | 9.80 | 0.3858 | 130 | – | – |
| 563038911 | – | – | – | 9.90 | 0.3898 | – | – | – |
| 563039011 | 25/64 | – | – | 9.92 | 0.3906 | – | – | 7/16 |
| 8664100 | – | – | – | 10.00 | 0.3937 | – | – | 10 |
| 563039711 | – | – | – | 10.10 | 0.3976 | – | – | – |
| 563040111 | – | – | – | 10.20 | 0.4016 | – | – | 12 |
| 563040511 | – | – | – | 10.30 | 0.4055 | – | – | – |
| 563040611 | 13/32 | – | – | 10.32 | 0.4063 | 140 | – | 7/16 |
| 563040911 | – | – | – | 10.40 | 0.4094 | – | – | – |
| 563041311 | – | – | – | 10.50 | 0.4134 | – | 205 | 12 |
| 563041711 | – | – | – | 10.60 | 0.4173 | – | – | – |
| 563041211 | – | – | – | 10.70 | 0.4213 | – | – | – |
| 563042211 | 27/64 | – | – | 10.72 | 0.4219 | 145 | – | 7/16 |
| 563042511 | – | – | – | 10.80 | 0.4252 | – | – | – |
| 563042911 | – | – | – | 10.90 | 0.4291 | – | – | 12 |
| 563043311 | – | – | – | 11.00 | 0.4331 | – | – | – |
| 563043711 | – | – | – | 11.10 | 0.4370 | – | – | – |
| 563043811 | 7/16 | – | – | 11.11 | 0.4375 | – | – | 7/16 |
| 563044011 | – | – | – | 11.20 | 0.4409 | – | – | – |
| 563044411 | – | – | – | 11.30 | 0.4449 | – | – | 12 |
| 563044811 | – | – | – | 11.40 | 0.4488 | – | – | – |
| 8664115 | – | – | – | 11.50 | 0.4528 | – | – | – |
| 563045311 | 29/64 | – | – | 11.51 | 0.4531 | – | – | 1/2 |
| 563045611 | – | – | – | 11.60 | 0.4567 | – | – | – |
| 563046011 | – | – | – | 11.70 | 0.4606 | – | – | – |
| 563046411 | – | – | – | 11.80 | 0.4646 | 155 | 215 | 12 |
| 563056811 | – | – | – | 11.90 | 0.4685 | – | – | – |
| 8664120 | – | – | – | 12.00 | 0.4724 | – | – | – |
| 563047611 | – | – | – | 12.10 | 0.4764 | – | – | 14 |
| 563048011 | – | – | – | 12.20 | 0.4803 | – | – | – |
| 563048411 | – | – | – | 12.30 | 0.4843 | – | – | 1/2 |
| 563048811 | – | – | – | 12.40 | 0.4882 | – | – | – |
| 563049211 | – | – | – | 12.50 | 0.4921 | – | – | 14 |
| 563049611 | – | – | – | 12.60 | 0.4961 | – | – | – |
| 563050011 | 1/2 | – | – | 12.70 | 0.5000 | – | – | 1/2 |
| 563053111 | 17/32 | – | – | 13.49 | 0.5313 | 175 | 225 | 5/8 |
| 563053211 | – | – | – | 13.50 | 0.5315 | – | – | 14 |
Упаковано: 1 шт.
Доступно только с покрытием WD1.
| Материал обрабатываемой детали | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Лист № | P — Углеродистые стали | M — Легированные стали | K — Нержавеющие стали | N — Чугун | S — Алюминий | H — Никелевые сплавы и титан | H — Закаленные стали | |||||||||
| 5630 | 1010, 1018, 1035, 1045, 1065 | 4140, 4340 | 300, 400, 17-4 PH | Чугун | 6061, 7075 | Inconel, 6Al4V | ~35 HRC | 35-45 HRC | 45-50 HRC, 50-70 HRC | |||||||
| хорошо ← → отлично | ||||||||||||||||
