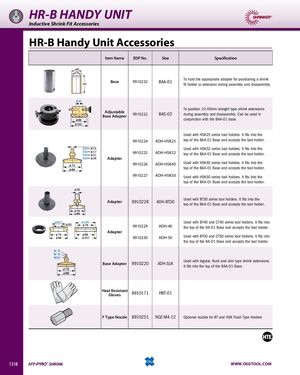

Общий каталог OSG 2018 - 2019 - страница 1318

HR-B HANDY UNIT Inductive Shrink Fit Accessories HR-B Handy Unit Accessories Item Name EDP No. Size Specification Base 9910232 BAA-01 To hold the appropriate adapter for positioning a shrinkfit holder or extension during assembly and disassembly. To position 10-40mm straight type shrink extensions AdjustableBase Adapter9910222BAS-02 during assembly and disassembly. Can be used in conjunction with the BAA-01 base. Used with HSK25 series tool holders. It fits into the 9910224 ADH-HSK25 top of the BAA-01 Base and accepts the tool holder. Used with HSK32 series tool holders. It fits into the 9910225 ADH-HSK32 top of the BAA-01 Base and accepts the tool holder. Adapter 9910226 ADH-HSK40 Used with HSK40 series tool holders. It fits into the top of the BAA-01 Base and accepts the tool holder. 9910227 ADH-HSK50 Used with HSK50 series tool holders. It fits into the top of the BAA-01 Base and accepts the tool holder. Adapter 9910228 ADH-BT30 Used with BT30 series tool holders. It fits into thetop of the BAA-01 Base and accepts the tool holder. Used with BT40 and CT40 series tool holders. It fits into 9910229 ADH-40 the top of the BA-01 Base and accepts the tool holder. Adapter 9910230 ADH-50 Used with BT50 and CT50 series tool holders. It fits into the top of the BA-01 Base and accepts the tool holder. Base Adapter 9910220 ADH-SLK Used with regular, flush and slim type shrink extensions.It fits into the top of the BAA-01 Base. Heat ResistantGloves8910171 HBT-01 F Type Nozzle 8910251 NOZ-M4-12 Optional nozzles for BT and HSK Flush Type Holders 1318 HY-PRO® SHRINK WWW.OSGTOOL.COM
