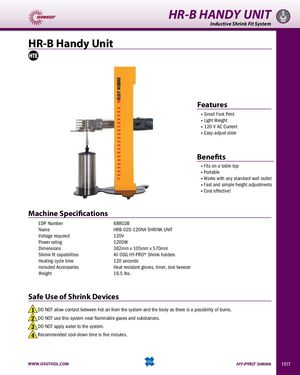

HR-B HANDY UNIT Inductive Shrink Fit System HR-B Handy Unit Features • Small Foot Print • Light Weight • 120 V AC Current • Easy-adjust slide Benefits • Fits on a table top • Portable • Works with any standard wall outlet • Fast and simple height adjustments • Cost effective! Machine Specifications EDP Number 68802B Name HRB-02S-120NA SHRINK UNIT Voltage required 120V Power rating 1200W Dimensions 362mm x 105mm x 570mm Shrink fit capabilities All OSG HY-PRO® Shrink holders Heating cycle time 120 seconds Included Accessories Heat resistant gloves, timer, tool tweezer Weight 16.5 lbs. Safe Use of Shrink Devices 11. DO NOT allow contact between hot air from the system and the body as there is a possibility of burns. 22. DO NOT use this system near flammable gases and substances. 33. DO NOT apply water to the system. 4 Recommended cool-down time is five minutes. WWW.OSGTOOL.COM HY-PRO® SHRINK 1317
