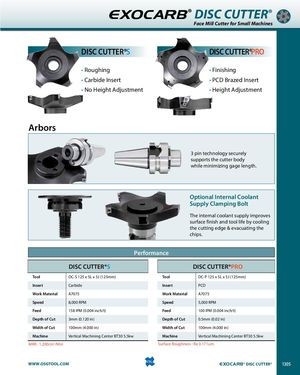

EXOCARB® DISC CUTTER® Face Mill Cutter for Small Machines DISC CUTTER®S DISC CUTTER®PRO • Roughing • Finishing • Carbide Insert • PCD Brazed Insert • No Height Adjustment • Height Adjustment Arbors 3 pin technology securely supports the cutter body while minimizing gage length. Optional Internal Coolant Supply Clamping Bolt The internal coolant supply improves surface finish and tool life by cooling the cutting edge & evacuating the chips. Performance DISC CUTTER®S DISC CUTTER®PRO Tool DC-S 125 x SL x 5J (125mm) Tool DC-P 125 x SL x 5J (125mm) Insert Carbide Insert PCD Work Material A7075 Work Material A7075 Speed 8,000 RPM Speed 5,000 RPM Feed 158 IPM (0.004 inch/t) Feed 100 IPM (0.004 inch/t) Depth of Cut 3mm (0.120 in) Depth of Cut 0.5mm (0.02 in) Width of Cut 100mm (4.000 in) Width of Cut 100mm (4.000 in) Machine Vertical Machining Center BT30 5.5kw Machine Vertical Machining Center BT30 5.5kw MRR : 1,200cm3/Min Surface Roughness : Ra 0.171um WWW.OSGTOOL.COM EXOCARB® DISC CUTTER® 1305
