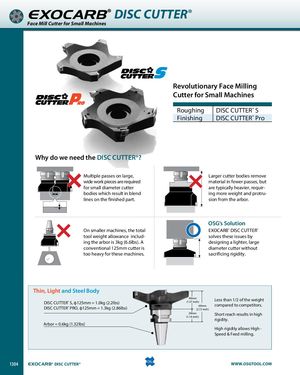

EXOCARB® DISC CUTTER® Face Mill Cutter for Small Machines Revolutionary Face Milling Cutter for Small Machines Roughing DISC CUTTER® S Finishing DISC CUTTER® Pro Why do we need the DISC CUTTER®? Multiple passes on large, Larger cutter bodies remove wide work pieces are required material in fewer passes, but for small diameter cutter are typically heavier, requir- bodies which result in blend ing more weight and protru- lines on the finished part. sion from the arbor. OSG’s Solution On smaller machines, the total EXOCARB® DISC CUTTER® tool weight allowance includ- solves these issues by ing the arbor is 3kg (6.6lbs). A designing a lighter, large conventional 125mm cutter is diameter cutter without too heavy for these machines. sacrificing rigidity. Thin, Light and Steel Body DISC CUTTER® S, ф125mm = 1.0kg (2.2lbs)DISC CUTTER® PRO, ф125mm = 1.3kg (2.86lbs) 40mm(1.57 inch) Less than 1/2 of the weight69mmcompared to competitors.(2.72 inch) 29mm Short reach results in high (1.14 inch) rigidity. Arbor = 0.6kg (1.32lbs) High rigidity allows High - Speed & Feed milling. 1304 EXOCARB® DISC CUTTER® WWW.OSGTOOL.COM
