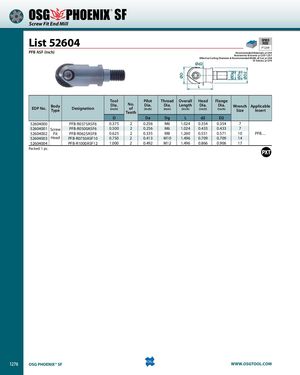

ØD ØDg ØDa ØD2 ® SF Screw Fit End Mill List 52604 SPEEDFEED P1259 PFB ASF (Inch) Recommended Materials: p1259 Accessories & Inserts: p1255-1257 Effective Cutting Diameter & Recommended Width of Cut: p1258 SF Arbors: p1279 Ød2 L Tool Pilot Thread Overall Head Flange EDP No. BodyType Designation Dia. No. Dia.(inch)of(inch)TeethDia.Length Dia. Dia. Wrench Applicable(mm)(inch)(inch)(inch)SizeInsert D Da Dg L d2 D2 52604000 PFB-R0375ASF6 0.375 2 0.256 M6 1.024 0.354 0.354 7 52604001 Screw PFB-R0500ASF6 0.500 2 0.256 M6 1.024 0.433 0.433 7 52604002 Fit PFB-R0625ASF8 0.625 2 0.335 M8 1.260 0.551 0.571 10 PFB… 52604003 Head PFB-R0750ASF10 0.750 2 0.413 M10 1.496 0.709 0.709 14 52604004 PFB-R1000ASF12 1.000 2 0.492 M12 1.496 0.866 0.906 17 Packed: 1 pc. 1276 OSG PHOENIX® SF WWW.OSGTOOL.COM
