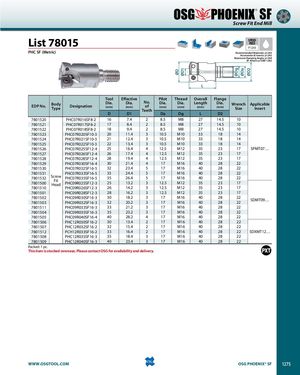

Общий каталог OSG 2018 - 2019 - страница 1275

ØD ØD1 ØDg ØDa ØD2 ® SF Screw Fit End Mill List 78015 SPEEDFEED P1243 PHC SF (Metric) Recommended Materials: p1243 Accessories & Inserts: p1242 Maximum Ramping Angle: p1244 SF Arbors: p1280-1282 L Tool Effective Pilot Thread Overall Flange EDP No. BodyType Designation Dia. (mm) Dia. No. Dia.(mm)of(mm)TeethDia.Length Dia. Wrench Applicable(mm)(mm)(mm)SizeInsert D D1 Da Dg L D2 7801520 PHC07R016SF8-2 16 7.4 2 8.5 M8 27 14.5 10 7801521 PHC07R017SF8-2 17 8.4 2 8.5 M8 27 14.5 10 7801522 PHC07R018SF8-2 18 9.4 2 8.5 M8 27 14.5 10 7801523 PHC07R020SF10-3 20 11.4 3 10.5 M10 33 18 14 7801524 PHC07R021SF10-3 21 12.4 3 10.5 M10 33 18 14 7801525 PHC07R022SF10-3 22 13.4 3 10.5 M10 33 18 14 7801526 PHC07R025SF12-4 25 16.4 4 12.5 M12 35 23 17 SPMT07… 7801527 PHC07R026SF12-4 26 17.4 4 12.5 M12 35 23 17 7801528 PHC07R028SF12-4 28 19.4 4 12.5 M12 35 23 17 7801529 PHC07R030SF16-4 30 21.4 4 17 M16 40 28 22 7801530 PHC07R032SF16-5 32 23.4 5 17 M16 40 28 22 7801531 PHC07R033SF16-5 33 24.4 5 17 M16 40 28 22 78015327801500ScrewFitHeadPHC07R035SF16-5PHC09R025SF12-3352526.4 5 17 M1613.2312.5M124035 28 222317 7801510 PHC09R026SF12-3 26 14.2 3 12.5 M12 35 23 17 7801501 PHC09R028SF12-3 28 16.2 3 12.5 M12 35 23 17 78015027801503 PHC09R030SF16-3 30 18.2 3 17 M16 40PHC09R032SF16-33220.2317M164028282222SDMT09… 7801511 PHC09R033SF16-3 33 21.2 3 17 M16 40 28 22 7801504 PHC09R035SF16-3 35 23.2 3 17 M16 40 28 22 7801505 PHC09R040SF16-4 40 28.2 4 17 M16 40 28 22 7801506 PHC12R030SF16-2 30 13.4 2 17 M16 40 28 22 7801507 PHC12R032SF16-2 32 15.4 2 17 M16 40 28 22 7801512 PCH12R033SF16-2 33 16.4 2 17 M16 40 28 22 SDXMT12… 7801508 PHC12R035SF16-3 35 18.4 3 17 M16 40 28 22 7801509 PHC12R040SF16-3 40 23.4 3 17 M16 40 28 22 Packed: 1 pc. This item is stocked overseas. Please contact OSG for availability and delivery. WWW.OSGTOOL.COM OSG PHOENIX® SF 1275
