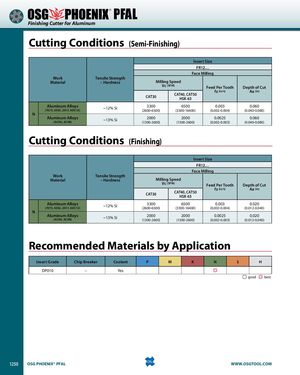

® PFAL Finishing Cutter for Aluminum Cutting Conditions (Semi-Finishing) Insert Size FR12… Face Milling Work Tensile Strength Material – Hardness Milling Speed Vc (SFM) Feed Per Tooth Depth of Cut fz (in/t) Aa (in) CAT30 CAT40, CAT50HSK-63 Aluminum Alloys(7075, 5052, 2017, ADC12)~12% Si 3300 6500 0.003 0.060(2600-6500)(3300-16400)(0.002-0.004)(0.040-0.080) N Aluminum Alloys(AC9A, AC9B) ~13% Si 2000 2000 0.0025 0.060(1300-2600)(1300-2600)(0.002-0.003)(0.040-0.080) Cutting Conditions (Finishing) Insert Size FR12… Face Milling Work Tensile Strength Material – Hardness Milling Speed Vc (SFM) Feed Per Tooth Depth of Cut fz (in/t) Aa (in) CAT30 CAT40, CAT50HSK-63 Aluminum Alloys(7075, 5052, 2017, ADC12)~12% Si 3300 6500 0.003 0.020(2600-6500)(3300-16400)(0.002-0.004)(0.012-0.040) N Aluminum Alloys(AC9A, AC9B) ~13% Si 2000 2000 0.0025 0.020(1300-2600)(1300-2600)(0.002-0.003)(0.012-0.040) Recommended Materials by Application Insert Grade Chip Breaker Coolant P M K N S H DP010 – Yes good best 1250 OSG PHOENIX® PFAL WWW.OSGTOOL.COM
