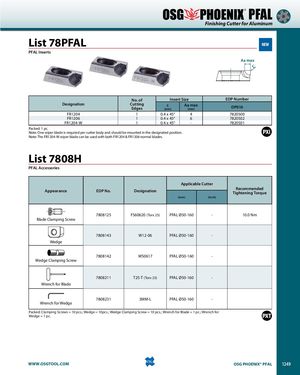

® PFAL Finishing Cutter for Aluminum List 78PFAL NEW PFAL Inserts Aa max C No. of Insert Size EDP Number Designation Cutting c Aa maxEdges(mm)(mm) DP010 FR1204 1 0.4 x 45° 4 7820500 FR1206 1 0.4 x 45° 6 7820502 FR1204-W 1 0.4 x 45° - 7820501 Packed: 1 pc. Note: One wiper blade is required per cutter body and should be mounted in the designated position. Note: The FR1204-W wiper blade can be used with both FR1204 & FR1206 normal blades. List 7808H PFAL Accessories Applicable Cutter Appearance EDP No. Designation RecommendedTightening Torque (mm) (inch) 7808125 FS60620 (Torx 25) PFAL Ø50-160 - 10.0 Nm Blade Clamping Screw 7808143 W12-06 PFAL Ø50-160 - Wedge 7808142 WS0617 PFAL Ø50-160 - Wedge Clamping Screw 7808211 T25-T (Torx 25) PFAL Ø50-160 - Wrench for Blade 7808231 3MM-L PFAL Ø50-160 - Wrench for Wedge Packed: Clamping Screws = 10 pcs.; Wedge = 10pcs.; Wedge Clamping Screw = 10 pcs.; Wrench for Blade = 1 pc.; Wrench for Wedge = 1 pc. WWW.OSGTOOL.COM OSG PHOENIX® PFAL 1249
