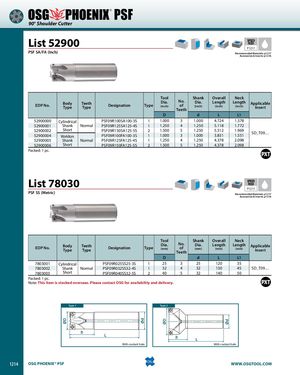

® PSF 90° Shoulder Cutter List 52900 SPEEDFEED P1217 PSF SA/FA (Inch) Recommended Materials: p1217 Accessories & Inserts: p1216 Tool Shank Overall Neck EDP No. Body TeethTypeTypeDesignation Dia. No. Dia.Type(inch)of(inch)TeethLengthLength Applicable(inch)(inch)Insert D d L L1 52900000 Cylindrical PSF09R100SA100-3S 1 1.000 3 1.000 4.724 1.378 52900001 Shank Normal PSF09R125SA125-4S 1 1.250 4 1.250 5.118 1.772 52900002 Short52900004Weldon PSF09R150SA125-5S 2 1.500PSF09R100FA100-3S11.000531.2501.000 5.5123.831 1.9691.551 SD_T09… 52900005 Shank Normal PSF09R125FA125-4S 1 1.250 4 1.250 4.378 2.098 52900006 Short PSF09R150FA125-5S 2 1.500 5 1.250 4.378 2.098 Packed: 1 pc. List 78030 SPEEDFEED P1217 PSF SS (Metric) Recommended Materials: p1217 Accessories & Inserts: p1216 Tool Shank Overall Neck EDP No. Body TeethTypeTypeDesignation Dia. No. Dia.Type(mm)of(mm)TeethLengthLength Applicable(mm)(mm)Insert D d L L1 7803001 Cylindrical PSF09R025SS25-3S 1 25 3 25 120 35 7803002 Shank Normal PSF09R032SS32-4S 1 32 4 32 130 45 SD_T09… 7803003 Short PSF09R040SS32-5S 2 40 5 32 140 50 Packed: 1 pc. Note: This item is stocked overseas. Please contact OSG for availability and delivery. Type 1 Type 2 l1 L l1 L With coolant hole. With coolant hole. 1214 OSG PHOENIX® PSF WWW.OSGTOOL.COM ØD Ød ØD Ød
