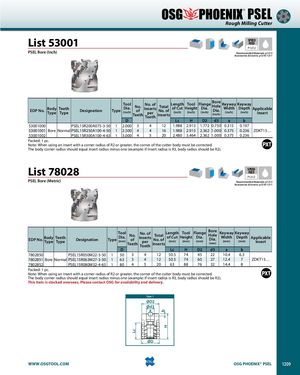

® PSEL Rough Milling Cutter List 53001 SPEEDFEED P1212 PSEL Bore (Inch) Recommended Materials: p1213 Accessories & Inserts: p1210-1211 EDP No. BodyType TeethType Designation Type ToolDia.(inch) No. of Teeth No. of Inserts per Tooth Total No. of Inserts Length of Cut (inch) Tool Height (inch) Flange Dia. (inch) Bore Hole Dia. (inch) Keyway Width (inch) Keyway Depth (inch) Applicable Insert D Lc H D2 d3 a b 53001000 PSEL15R200A075-3-50 1 2.000 3 4 12 1.988 2.913 1.772 0.750 0.315 0.197 53001001 Bore Normal PSEL15R250A100-4-50 1 2.500 4 4 16 1.988 2.913 2.362 1.000 0.375 0.236 ZDKT15… 53001002 PSEL15R300A100-4-63 1 3.000 4 5 20 2.480 3.464 2.362 1.000 0.375 0.236 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). List 78028 SPEEDFEED P1212 PSEL Bore (Metric) Recommended Materials: p1213 Accessories & Inserts: p1210-1211 EDP No. Body Type Teeth Type Designation Type Tool Dia. (mm) No. of Teeth No. of Inserts per Tooth Total No. of Inserts Length of Cut (mm) Tool Height (mm) Flange Dia. (mm) BoreHoleDia.(mm)Keyway KeywayWidthDepth(mm)(mm)ApplicableInsert D Lc H D2 d3 a b 7802850 PSEL15R050M22-3-50 1 50 3 4 12 50.5 74 45 22 10.4 6.3 7802851 Bore Normal PSEL15R063M27-3-50 1 63 3 4 12 50.5 74 60 27 12.4 7 ZDKT15… 7802852 PSEL15R080M32-4-63 1 80 4 5 20 63 88 76 32 14.4 8 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). This item is stocked overseas. Please contact OSG for availability and delivery. Type 1 ØD2 Ød3 a ØD WWW.OSGTOOL.COM OSG PHOENIX® PSEL 1209 Lc b H
