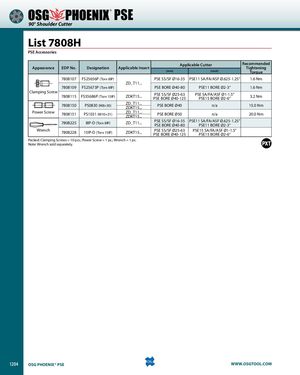

® PSE 90° Shoulder Cutter List 7808H PSE Accessories Applicable Cutter Recommended Appearance EDP No. Designation Applicable Insert Tightening (mm) (inch) Torque 7808107 FS25656P (Torx 8IP) PSE SS/SF Ø16-35 PSE11 SA/FA/ASF Ø.625-1.25” 1.6 Nm ZD_T11... 7808109 FS25673P (Torx 8IP) PSE BORE Ø40-80 PSE11 BORE Ø2-3” 1.6 Nm Clamping Screw 7808115 FS35686P (Torx 15IP) ZDKT15... PSE SS/SF Ø25-63 PSE SA/FA/ASF Ø1-1.5”PSE BORE Ø40-125PSE15 BORE Ø2-6”3.2 Nm 7808150 PS0830 (M8×30) ZD_T11...ZDKT15... PSE BORE Ø40 n/a 15.0 Nm Power Screw 7808151 PS1031 (M10×31) ZD_T11...ZDKT15... PSE BORE Ø50 n/a 20.0 Nm 7808225 8IP-D (Torx 8IP) ZD_T11... PSE SS/SF Ø16-35 PSE11 SA/FA/ASF Ø.625-1.25”PSE BORE Ø40-80PSE11 BORE Ø2-3” Wrench 7808228 15IP-D (Torx 15IP) ZDKT15... PSE SS/SF Ø25-63 PSE15 SA/FA/ASF Ø1-1.5”PSE BORE Ø40-125PSE15 BORE Ø2-6” Packed: Clamping Screws = 10 pcs.; Power Screw = 1 pc.; Wrench = 1 pc. Note: Wrench sold separately. 1204 OSG PHOENIX® PSE WWW.OSGTOOL.COM
