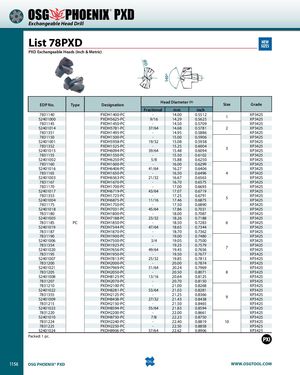

Общий каталог OSG 2018 - 2019 - страница 1156

ØD 140º ® PXD Exchangeable Head Drill List 78PXD NEWSIZES PXD Exchangeable Heads (Inch & Metric) EDP No. Type Designation Head Diameter (D) Size Grade Fractional mm inch 783114052401000 PXDH1400-PCPXDH5625-PC - 14.00 0.55129/1614.290.56251 XP3425XP3425 7831145 PXDH1450-PC - 14.50 0.5709 XP3425 52401014 PXDH5781-PC 37/64 14.68 0.5781 2 XP3425 7831351 PXDH1495-PC - 14.95 0.5886 XP3425 7831150 PXDH1500-PC - 15.00 0.5906 XP3425 52401001 PXDH5938-PC 19/32 15.08 0.5938 XP3425 783135252401015 PXDH1525-PCPXDH6094-PC - 15.25 0.600439/6415.480.60943 XP3425XP3425 7831155 PXDH1550-PC - 15.50 0.6102 XP3425 52401002 PXDH6250-PC 5/8 15.88 0.6250 XP3425 7831160 PXDH1600-PC - 16.00 0.6299 XP3425 52401016 PXDH6406-PC 41/64 16.27 0.6406 XP3425 7831165 PXDH1650-PC - 16.50 0.6496 4 XP3425 52401003 PXDH6563-PC 21/32 16.67 0.6563 XP3425 7831167 PXDH1670-PC - 16.70 0.6575 XP3425 7831170 PXDH1700-PC - 17.00 0.6693 XP3425 52401017 PXDH6719-PC 43/64 17.07 0.6719 XP3425 783135352401004 PXDH1725-PCPXDH6875-PC - 17.25 0.679111/1617.460.68755 XP3425XP3425 7831175 PXDH1750-PC - 17.50 0.6890 XP3425 52401018 PXDH7031-PC 45/64 17.86 0.7031 XP3425 7831180 PXDH1800-PC - 18.00 0.7087 XP3425 52401005 PXDH7188-PC 23/32 18.26 0.7188 XP3425 7831185 PC PXDH1850-PC - 18.50 0.7283 6 XP3425 52401019 PXDH7344-PC 47/64 18.65 0.7344 XP3425 7831187 PXDH1870-PC - 18.70 0.7362 XP3425 7831190 PXDH1900-PC - 19.00 0.7480 XP3425 52401006 PXDH7500-PC 3/4 19.05 0.7500 XP3425 783135452401020 PXDH1925-PCPXDH7656-PC - 19.25 0.757949/6419.450.76567 XP3425XP3425 7831195 PXDH1950-PC - 19.50 0.7677 XP3425 52401007 PXDH7813-PC 25/32 19.85 0.7813 XP3425 7831200 PXDH2000-PC - 20.00 0.7874 XP3425 52401021 PXDH7969-PC 51/64 20.24 0.7969 XP3425 7831205 PXDH2050-PC - 20.50 0.8071 8 XP3425 52401008 PXDH8125-PC 13/16 20.64 0.8125 XP3425 7831207 PXDH2070-PC - 20.70 0.8150 XP3425 7831210 PXDH2100-PC - 21.00 0.8268 XP3425 52401022 PXDH8281-PC 53/64 21.03 0.8281 XP3425 783135552401009 PXDH2125-PCPXDH8438-PC - 21.25 0.836627/3221.430.84389 XP3425XP3425 7831215 PXDH2150-PC - 21.50 0.8465 XP3425 52401023 PXDH8594-PC 55/64 21.83 0.8594 XP3425 7831220 PXDH2200-PC - 22.00 0.8661 XP3425 52401010 PXDH8750-PC 7/8 22.23 0.8750 XP3425 7831224 PXDH2240-PC - 22.40 0.8819 10 XP3425 7831225 PXDH2250-PC - 22.50 0.8858 XP3425 52401024 PXDH8906-PC 57/64 22.62 0.8906 XP3425 Packed: 1 pc. 1156 OSG PHOENIX® PXD WWW.OSGTOOL.COM
