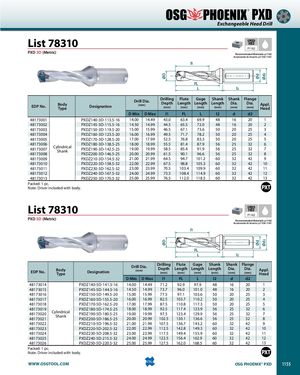

ØDØD ØdØd Ød2Ød2 ® PXD Exchangeable Head Drill List 78310 SPEEDFEED P1162 PXD 3D (Metric) Recommended Materials: p1162 Accessories & Inserts: p1156-1161 l1 FL L l2 EDP No. BodyType Designation Drill Dia. (mm) Drilling Flute Gage Shank Shank FlangeDepthLengthLengthLengthDia.Dia.Appl.(mm)(mm)(mm)(mm)(mm)(mm)Head D Min D Max l1 FL L l2 d d2 48173001 PXDZ140-3D-113.5-16 14.00 14.49 43.0 63.4 69.9 48 16 20 1 48173002 PXDZ145-3D-115.5-16 14.50 14.99 44.5 65.5 72.0 48 16 20 2 48173003 PXDZ150-3D-119.5-20 15.00 15.99 46.5 67.1 73.6 50 20 25 3 48173004 PXDZ160-3D-123.5-20 16.00 16.99 49.5 71.7 78.2 50 20 25 4 48173005 PXDZ170-3D-128.5-20 17.00 17.99 52.5 76.8 83.3 50 20 25 5 4817300648173007CylindricalShank48173008PXDZ180-3D-138.5-25PXDZ190-3D-142.5-25PXDZ200-3D-146.5-2518.0018.9955.519.0019.9958.520.0020.9961.581.485.490.187.991.996.6565656252525323232678 48173009 PXDZ210-3D-154.5-32 21.00 21.99 64.5 94.7 101.2 60 32 42 9 48173010 PXDZ220-3D-158.5-32 22.00 22.99 67.5 98.8 105.3 60 32 42 10 48173011 PXDZ230-3D-162.5-32 23.00 23.99 70.5 103.4 109.9 60 32 42 11 48173012 PXDZ240-3D-167.5-32 24.00 24.99 73.5 108.4 114.9 60 32 42 12 48173013 PXDZ250-3D-170.5-32 25.00 25.99 76.5 112.0 118.5 60 32 42 13 Packed: 1 pc. Note: Driver included with body. List 78310 SPEEDFEED P1162 PXD 5D (Metric) Recommended Materials: p1162 Accessories & Inserts: p1156-1161 l1 FL L l2 EDP No. BodyType Designation Drill Dia.(mm) Drilling Flute Gage Shank Shank FlangeDepthLengthLengthLengthDia.Dia.Appl.(mm)(mm)(mm)(mm)(mm)(mm)Head D Min D Max l1 FL L l2 d d2 48173014 PXDZ140-5D-141.5-16 14.00 14.49 71.2 92.9 97.9 48 16 20 1 48173015 PXDZ145-5D-144.5-16 14.50 14.99 73.7 96.0 101.0 48 16 20 2 48173016 PXDZ150-5D-149.5-20 15.00 15.99 77.5 97.1 103.6 50 20 25 3 48173017 PXDZ160-5D-155.5-20 16.00 16.99 82.5 103.7 110.2 50 20 25 4 48173018 PXDZ170-5D-162.5-20 17.00 17.99 87.5 110.8 117.3 50 20 25 5 48173019 PXDZ180-5D-174.5-25 18.00 18.99 92.5 117.4 123.9 56 25 32 6 4817302048173021CylindricalShankPXDZ190-5D-180.5-25PXDZ200-5D-186.5-2519.0019.99 97.5 123.4 129.920.0020.99102.5130.1136.6565625322532 78 48173022 PXDZ210-5D-196.5-32 21.00 21.99 107.5 136.7 143.2 60 32 42 9 48173023 PXDZ220-5D-202.5-32 22.00 22.99 112.5 142.8 149.3 60 32 42 10 48173024 PXDZ230-5D-208.5-32 23.00 23.99 117.5 149.4 155.9 60 32 42 11 48173025 PXDZ240-5D-215.5-32 24.00 24.99 122.5 156.4 162.9 60 32 42 12 48173026 PXDZ250-5D-220.5-32 25.00 25.99 127.5 162.0 168.5 60 32 42 13 Packed: 1 pc. Note: Driver included with body. WWW.OSGTOOL.COM OSG PHOENIX® PXD 1155
