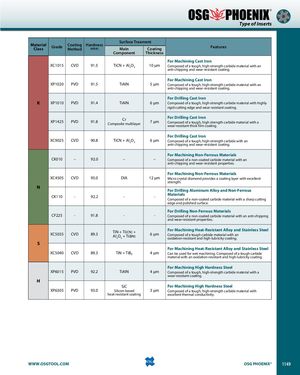

® Type of Inserts Surface Treament MaterialClassGradeCoating HardnessMethod(HRA) Main Coating Features Component Thickness For Machining Cast Iron XC1015 CVD 91.5 TiCN + Al2O3 10 μm Composed of a tough, high-strength carbide material with an anti-chipping and wear-resistant coating. For Machining Cast Iron XP1020 PVD 91.5 TiAlN 5 μm Composed of a tough, high-strength carbide material with an anti-chipping and wear-resistant coating. For Drilling Cast Iron K XP1010 PVD 91.4 TiAlN 6 µm Composed of a tough, high-strength carbide material with highly rigid cutting edge and wear resistant coating. XP1425 PVD 91.8 CrComposite multilayer For Drilling Cast Iron7 μmComposed of a tough, high strength carbide material with awear-resistant thick film coating. For Drilling Cast Iron XC9025 CVD 90.8 TiCN + Al2O3 6 μm Composed of a tough, high-strength carbide with an anti-chipping and wear-resistant coating. For Machining Non-Ferrous Materials CK010 – 92.0 – – Composed of a non-coated carbide material with an anti-chipping and wear-resistant properties. For Machining Non-Ferrous Materials XC4505 CVD 93.0 DIA 12 μm Micro crystal diamond provides a coating layer with excellent strength. N For Drilling Aluminum Alloy and Non-Ferrous CK110 - 92.2 - - Materials Composed of a non-coated carbide material with a sharp cutting edge and polished surface. For Drilling Non-Ferrous Materials CF225 - 91.8 - - Composed of a non-coated carbide material with an anti-chipping and wear-resistant properties. XC5035 CVD 89.3 TiN + Ti(CN) +Al2O3 + Ti(BN) For Machining Heat-Resistant Alloy and Stainless Steel6 μmComposed of a tough carbide material with anoxidation-resistant and high-lubricity coating. S For Machining Heat-Resistant Alloy and Stainless Steel XC5040 CVD 89.3 TiN + TiB₂ 4 μm Can be used for wet machining. Composed of a tough carbide material with an oxidation-resistant and high-lubricity coating. For Machining High Hardness Steel XP6015 PVD 92.2 TiAlN 4 µm Composed of a tough, high-strength carbide material with a wear-resistant coating. H SiC For Machining High Hardness Steel XP6305 PVD 93.0 Silicon-based 3 μm Composed of a tough, high-strength carbide material with heat-resistant coating excellent thermal conductivity. WWW.OSGTOOL.COM OSG PHOENIX® 1149
