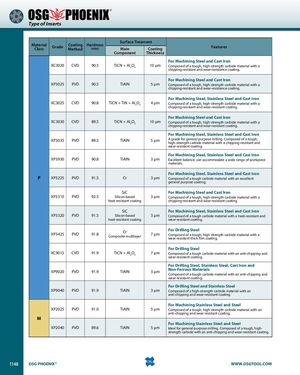

Общий каталог OSG 2018 - 2019 - страница 1148

® Type of Inserts Surface Treament MaterialClassGrade Coating HardnessMethod(HRA) Main Coating Features Component Thickness For Machining Steel and Cast Iron XC3020 CVD 90.5 TiCN + Al2O3 10 μm Composed of a tough, high-strength carbide material with a chipping-resistant and wear-resistance coating. For Machining Steel and Cast Iron XP3025 PVD 90.5 TiAlN 5 μm Composed of a tough, high-strength carbide material with a chipping-resistant and wear-resistance coating. For Machining Steel, Stainless Steel and Cast Iron XC3025 CVD 90.8 TiCN + TiN + Al2O3 4 μm Composed of a tough, high-strength carbide material with a chipping-resistant and wear-resistant coating. For Machining Steel and Cast Iron XC3030 CVD 89.5 TiCN + Al2O3 10 μm Composed of a tough, high-strength carbide material with a chipping-resistant and wear-resistant coating. For Machining Steel, Stainless Steel and Cast Iron XP3035 PVD 89.5 TiAlN 5 μm A grade for general purpose milling. Composed of a tough,high-strength carbide material with a chipping-resistant and wear-resistant coating. For Machining Steel, Stainless Steel and Cast Iron XP3930 PVD 90.8 TiAlN 3 μm Excellent balance; can accommodate a wide range of workpiece materials. For Machining Steel, Stainless Steel and Cast Iron P XP3225 PVD 91.5 Cr 3 μm Composed of a tough carbide material with an excellent general purpose coating. SiC For Machining Steel and Cast Iron XP3310 PVD 92.5 Silicon-based 3 μm Composed of a tough, high-strength carbide material with a heat-resistant coating chipping-resistant and wear-resistant coating. SiC For Machining Steel, Stainless Steel and Cast Iron XP3320 PVD 91.5 Silicon-based 3 μm Composed of a tough carbide material with a heat-resistant and heat-resistant coating wear-resistant coating. XP3425 PVD 91.8 CrComposite multilayer For Drilling Steel7 μmComposed of a tough, high strength carbide material with awear-resistant thick film coating. For Drilling Steel XC9015 CVD 91.9 TiCN + Al2O3 7 µm Composed of a tough carbide material with an anti-chipping and wear-resistant coating. For Drilling Steel, Stainless Steel, Cast Iron and XP9020 PVD 91.9 TiAlN 3 μm Non-Ferrous Materials Composed of a tough carbide material with an anti-chipping and wear-resistant coating. For Drilling Steel and Stainless Steel XP9040 PVD 91.9 TiAlN 3 μm Composed of a high-strength carbide material with an anti-chipping and wear-resistant coating. For Machining Stainless Steel and Steel XP2025 PVD 91.0 TiAlN 5 μm Composed of a tough, high-strength carbide material with an anti-chipping and wear resistant coating. M For Machining Stainless Steel and Steel XP2040 PVD 89.6 TiAlN 5 μm Ideal for general-purpose milling. Composed of a tough, high- strength carbide with an anti-chipping and wear-resistant coating. 1148 OSG PHOENIX® WWW.OSGTOOL.COM
