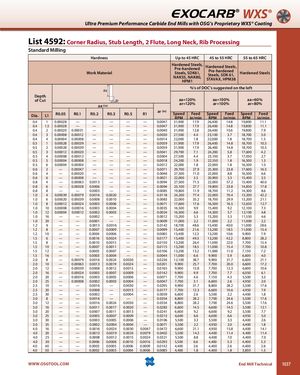

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4592: Corner Radius, Stub Length, 2 Flute, Long Neck, Rib Processing Standard Milling Hardness Up to 45 HRC 45 to 55 HRC 55 to 65 HRC Work Material Hardened Steels,Pre-hardenedSteels, SDK61,NAK55, NAK80,HPM1Hardened Steels,Pre-hardenedSteels, SDK 61,STAVAX, HPM38Hardened Steels %’s of DOC’s suggested on the left Depth of Cut aa=120% aa=100% aa=60% aa (in) ar=120% ar=100% ar=80% Dia. L1 R0.05 R0.1 R0.2 R0.3 R0.5 R1 ar (in) Speed Feed Speed Feed Speed FeedRPMin/minRPMin/minRPMin/min 0.4 1 0.00028 — — — — — 0.0047 31,900 17.9 26,400 14.8 19,800 11.1 0.4 1.5 0.00028 — — — — — 0.0047 31,900 17.9 26,400 14.8 19,800 11.1 0.4 2 0.00020 0.00031 — — — — 0.0040 31,900 12.8 26,400 10.6 19,800 7.9 0.4 3 0.00008 0.00012 — — — — 0.0030 27,500 4.4 23,100 3.7 18,700 3.0 0.4 4 0.00004 0.00008 — — — — 0.0014 22,000 1.8 22,000 1.8 18,700 1.5 0.5 1 0.00028 0.00039 — — — — 0.0059 31,900 17.9 26,400 14.8 18,700 10.5 0.5 2 0.00028 0.00039 — — — — 0.0059 31,900 17.9 26,400 14.8 18,700 10.5 0.5 3 0.00012 0.00020 — — — — 0.0041 29,700 7.1 24,200 5.8 17,600 4.2 0.5 4 0.00008 0.00012 — — — — 0.0004 27,500 4.4 23,100 3.7 17,050 2.7 0.5 5 0.00004 0.00008 — — — — 0.0018 24,200 1.9 22,550 1.8 16,500 1.3 0.5 6 0.00004 0.00004 — — — — 0.0012 22,000 1.8 22,000 1.8 16,500 1.3 0.6 2 — 0.00047 — — — — 0.0071 29,700 27.9 25,300 23.8 17,600 16.5 0.6 4 — 0.00020 — — — — 0.0048 27,500 11.0 22,000 8.8 16,500 6.6 0.6 6 — 0.00008 — — — — 0.0021 22,000 3.5 20,900 3.3 15,400 2.5 0.8 4 — 0.00063 0.0013 — — — 0.0094 27,500 71.5 22,000 57.2 15,400 40.0 0.8 6 — 0.00028 0.0006 — — — 0.0094 23,100 27.7 19,800 23.8 14,850 17.8 0.8 8 — — 0.0003 — — — 0.0085 19,800 11.9 18,700 11.2 14,300 8.6 1.0 4 0.00039 0.00079 0.0016 0.0020 — — 0.0118 24,200 77.4 22,000 70.4 13,200 42.2 1.0 6 0.00020 0.00039 0.0008 0.0010 — — 0.0083 22,000 35.2 18,700 29.9 13,200 21.1 1.0 8 0.00012 0.00024 0.0005 0.0006 — — 0.0071 17,600 17.6 16,500 16.5 12,650 12.7 1.0 10 0.00008 0.00016 0.0003 0.0004 — — 0.0035 16,500 9.9 15,400 9.2 12,100 7.3 1.0 12 0.00004 0.00012 0.0002 0.0003 — — 0.0024 16,500 6.6 14,300 5.7 12,100 4.8 1.0 16 — — 0.0002 — — — 0.0012 13,200 5.3 13,200 5.3 11,550 4.6 1.0 20 — — 0.0001 — — — 0.0009 11,000 2.2 11,000 2.2 11,000 2.2 1.2 6 — — 0.0013 0.0016 — — 0.0142 18,700 48.6 15,400 40.0 11,000 28.6 1.2 8 — — 0.0007 0.0009 — — 0.0099 15,400 21.6 13,200 18.5 11,000 15.4 1.2 10 — — 0.0004 0.0006 — — 0.0085 15,400 12.3 13,200 10.6 9,900 7.9 1.5 6 — — 0.0016 0.0024 — — 0.0177 15,400 49.3 13,200 42.2 8,800 28.2 1.5 8 — — 0.0010 0.0015 — — 0.0150 13,200 26.4 11,000 22.0 7,700 15.4 1.5 10 — — 0.0007 0.0011 — — 0.0115 13,200 18.5 11,000 15.4 7,700 10.8 1.5 12 — — 0.0005 0.0007 — — 0.0106 13,200 13.2 11,000 11.0 7,150 7.2 1.5 16 — — 0.0003 0.0004 — — 0.0044 11,000 6.6 9,900 5.9 6,600 4.0 2.0 8 — 0.00079 0.0016 0.0024 0.0030 — 0.0236 12,100 38.7 9,900 31.7 6,600 21.1 2.0 10 — 0.00063 0.0013 0.0019 0.0024 — 0.0201 9,900 25.7 7,700 20.0 6,600 17.2 2.0 12 — 0.00039 0.0008 0.0012 0.0015 — 0.0165 9,900 15.8 7,700 12.3 6,600 10.6 2.0 16 — 0.00024 0.0005 0.0007 0.0009 — 0.0142 9,900 9.9 7,700 7.7 6,050 6.1 2.0 20 — 0.00016 0.0003 0.0005 0.0006 — 0.0071 7,700 4.6 7,150 4.3 5,500 3.3 2.0 25 — 0.00008 0.0002 0.0003 0.0004 — 0.0047 7,700 3.1 6,600 2.6 4,950 2.0 2.5 10 — — 0.0016 — 0.0030 — 0.0295 9,900 31.7 8,800 28.2 5,500 17.6 2.5 20 — — 0.0008 — 0.0015 — 0.0177 7,700 12.3 6,600 10.6 4,950 7.9 2.5 30 — — 0.0002 — 0.0004 — 0.0059 6,600 2.6 5,500 2.2 4,400 1.8 3.0 8 — — 0.0016 — — — 0.0354 8,800 28.2 7,700 24.6 5,500 17.6 3.0 12 — — 0.0016 0.0024 0.0030 — 0.0354 8,800 28.2 7,700 24.6 5,500 17.6 3.0 16 — — 0.0011 0.0017 0.0020 — 0.0283 6,600 14.5 6,600 14.5 5,500 12.1 3.0 20 — — 0.0007 0.0011 0.0013 — 0.0241 6,600 9.2 6,600 9.2 5,500 7.7 3.0 25 — — 0.0005 0.0007 0.0009 — 0.0213 6,600 6.6 6,600 6.6 4,950 5.0 3.0 30 — — 0.0003 0.0005 0.0006 — 0.0106 5,500 3.3 5,500 3.3 4,400 2.6 3.0 35 — — 0.0002 0.0004 0.0004 — 0.0071 5,500 2.2 4,950 2.0 4,400 1.8 4.0 16 — — 0.0016 0.0024 0.0030 0.0047 0.0472 6,600 21.1 4,950 15.8 4,400 14.1 4.0 20 — — 0.0013 0.0019 0.0024 0.0079 0.0402 5,500 14.3 4,400 11.4 4,400 11.4 4.0 25 — — 0.0008 0.0012 0.0015 0.0024 0.0321 5,500 8.8 4,400 7.0 4,400 7.0 4.0 30 — — 0.0006 0.0008 0.0010 0.0016 0.0293 5,500 6.6 4,400 5.3 4,400 5.3 4.0 40 — — 0.0003 0.0005 0.0006 0.0009 0.0142 4,400 2.6 4,400 2.6 4,400 2.6 4.0 50 — — 0.0002 0.0003 0.0004 0.0006 0.0085 4,400 1.8 4,400 1.8 3,850 1.5 WWW.OSGTOOL.COM End Mill Technical 1037
