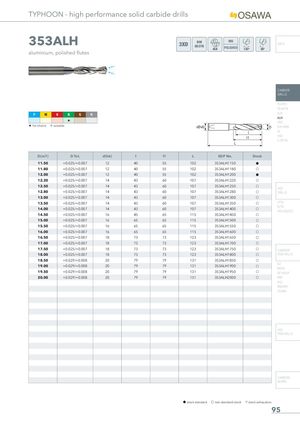

TYPHOON - high performance solid carbide drills
353ALH
3XD
aluminium, polished flutes
DIN 6537K INFO POLISHED
CARBIDE DRILLS
PU-HPU
| P M K N H | S H |
| H1st choiceIsuitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(m7) | D Tol. | d(h6) | l | l1 | L | EDP No. | Stock |
| 11.50 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1150 | h |
| 11.80 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1180 | f |
| 12.00 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1200 | h |
| 12.20 | +0.025/+0.007 | 14 | 43 | 60 | 107 | 353ALH1220 | f |
| 12.50 | +0.025/+0.007 | 14 | 43 | 60 | 107 | 353ALH1250 | f |
| 12.80 | +0.025/+0.007 | 14 | 43 | 60 | 107 | 353ALH1280 | f |
| 13.00 | +0.025/+0.007 | 14 | 43 | 60 | 107 | 353ALH1300 | f |
| 13.50 | +0.025/+0.007 | 14 | 43 | 60 | 107 | 353ALH1350 | f |
| 14.00 | +0.025/+0.007 | 14 | 43 | 60 | 107 | 353ALH1400 | f |
| 14.50 | +0.025/+0.007 | 16 | 45 | 65 | 115 | 353ALH1450 | f |
| 15.00 | +0.025/+0.007 | 16 | 65 | 65 | 115 | 353ALH1500 | f |
| 15.50 | +0.025/+0.007 | 16 | 65 | 65 | 115 | 353ALH1550 | f |
| 16.00 | +0.025/+0.007 | 16 | 65 | 65 | 115 | 353ALH1600 | f |
| 16.50 | +0.025/+0.007 | 18 | 73 | 73 | 123 | 353ALH1650 | f |
| 17.00 | +0.025/+0.007 | 18 | 73 | 73 | 123 | 353ALH1700 | f |
| 17.50 | +0.025/+0.007 | 18 | 73 | 73 | 123 | 353ALH1750 | f |
| 18.00 | +0.025/+0.007 | 18 | 73 | 73 | 123 | 353ALH1800 | f |
| 18.50 | +0.029/+0.008 | 20 | 79 | 79 | 131 | 353ALH1850 | f |
| 19.00 | +0.029/+0.008 | 20 | 79 | 79 | 131 | 353ALH1900 | f |
| 19.50 | +0.029/+0.008 | 20 | 79 | 79 | 131 | 353ALH1950 | f |
| 20.00 | +0.029/+0.008 | 20 | 79 | 79 | 131 | 353ALH2000 | f |
HSS END-MILLS
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
