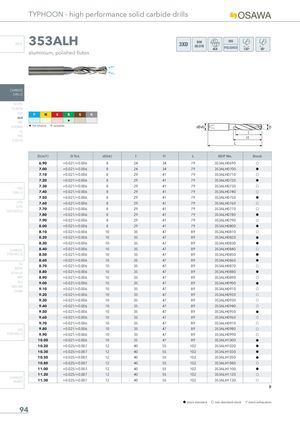

TYPHOON - high performance solid carbide drills
353ALH
3XD DIN INFO 6537K POLISHED
aluminium, polished flutes
CARBIDE DRILLS
PU-HPU
| P M K N H | S H |
| H1st choiceIsuitable |
HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(m7) | D Tol. | d(h6) | l | l1 | L | EDP No. | Stock | |
| 6.90 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353ALH0690 | f | |
| 7.00 | +0.021/+0.006 | 8 | 24 | 34 | 79 | 353ALH0700 | h | |
| 7.10 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0710 | f | |
| 7.20 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0720 | h | |
| HSS | 7.30 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0730 | f |
| DRILLS | 7.40 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0740 | f |
| 7.50 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0750 | h | |
| LFTA | 7.60 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0760 | f |
| SUTA S-HSS/CO | 7.70 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0770 | f |
| 7.80 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0780 | h | |
| 7.90 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0790 | f | |
| 8.00 | +0.021/+0.006 | 8 | 29 | 41 | 79 | 353ALH0800 | h | |
| 8.10 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0810 | f | |
| 8.20 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0820 | h | |
| 8.30 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0830 | h | |
| CARBIDE | 8.40 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0840 | f |
| ND-MILLS | 8.50 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0850 | h |
| 8.60 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0860 | h | |
| G2 MDTA | 8.70 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0870 | f |
| HF VH/UP | 8.80 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0880 | h |
| MEF | 8.90 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0890 | f |
| ALU | 9.00 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0900 | h |
| MEX/MH UH/MH | 9.10 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0910 | f |
| 9.20 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0920 | f | |
| 9.30 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0930 | f | |
| 9.40 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0940 | f | |
| 9.50 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0950 | h | |
| 9.60 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0960 | f | |
| 9.70 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0970 | f | |
| HSS | 9.80 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0980 | f |
| ND-MILLS | 9.90 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH0990 | f |
| 10.00 | +0.021/+0.006 | 10 | 35 | 47 | 89 | 353ALH1000 | h | |
| 10.20 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1020 | h | |
| 10.30 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1030 | h | |
| 10.50 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1050 | h | |
| 10.80 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1080 | f | |
| 11.00 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1100 | h | |
| 11.20 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1120 | f | |
| CARBIDE BURRS | 11.30 | +0.025/+0.007 | 12 | 40 | 55 | 102 | 353ALH1130 | f |
