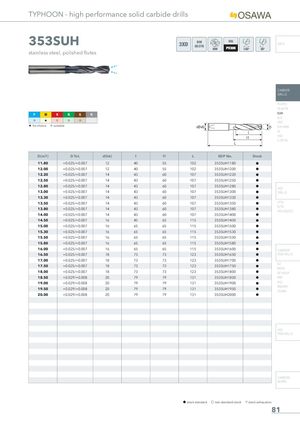

TYPHOON - high performance solid carbide drills

353SUH

3XD DIN 6537K INFO

stainless steel, polished flutes

CARBIDE DRILLS

PU-HPU

P M	K N	S H
I H	I I	I
H1st choiceI	suitable

TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA

D(m7)	D Tol.	d(h6)	l	l1	L	EDP No.	Stock
11.80	+0.025/+0.007	12	40	55	102	353SUH1180	h
12.00	+0.025/+0.007	12	40	55	102	353SUH1200	h
12.20	+0.025/+0.007	14	43	60	107	353SUH1220	h
12.50	+0.025/+0.007	14	43	60	107	353SUH1250	h
12.80	+0.025/+0.007	14	43	60	107	353SUH1280	h
13.00	+0.025/+0.007	14	43	60	107	353SUH1300	h
13.30	+0.025/+0.007	14	43	60	107	353SUH1330	h
13.50	+0.025/+0.007	14	43	60	107	353SUH1350	h
13.80	+0.025/+0.007	14	43	60	107	353SUH1380	h
14.00	+0.025/+0.007	14	43	60	107	353SUH1400	h
14.50	+0.025/+0.007	16	45	65	115	353SUH1450	h
15.00	+0.025/+0.007	16	65	65	115	353SUH1500	h
15.30	+0.025/+0.007	16	65	65	115	353SUH1530	h
15.50	+0.025/+0.007	16	65	65	115	353SUH1550	h
15.80	+0.025/+0.007	16	65	65	115	353SUH1580	h
16.00	+0.025/+0.007	16	65	65	115	353SUH1600	h
16.50	+0.025/+0.007	18	73	73	123	353SUH1650	h
17.00	+0.025/+0.007	18	73	73	123	353SUH1700	h
17.50	+0.025/+0.007	18	73	73	123	353SUH1750	h
18.00	+0.025/+0.007	18	73	73	123	353SUH1800	h
18.50	+0.029/+0.008	20	79	79	131	353SUH1850	h
19.00	+0.029/+0.008	20	79	79	131	353SUH1900	h
19.50	+0.029/+0.008	20	79	79	131	353SUH1950	h
20.00	+0.029/+0.008	20	79	79	131	353SUH2000	h

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
