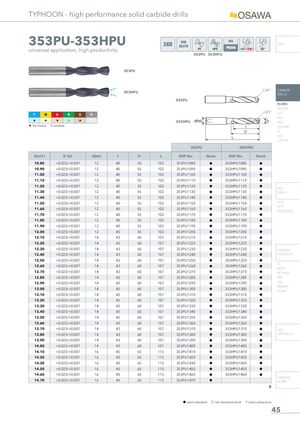

TYPHOON - high performance solid carbide drills

353PU-353HPU

3XD DIN 6537K INFO universal application, high productivity 140°+C45°

						353PU
						353HPU	353PU
P	M	K	N	S	H
H	H	H	I	H			353HPU
H1st ch	oice	Isuitable

C45° CARBIDE DRILLS

PU-HPU TA-4HTA C45° SUH ALH H 1st choice I suitable SUH MINI HL HSD C-SD-TA

						353PU		353HP	U
D(m7)	D Tol.	d(h6)	l	l1	L	EDP No.	Stock	EDP No.	Stock
10.80	+0.025/+0.007	12	40	55	102	353PU1080	h	353HPU1080	h
10.90	+0.025/+0.007	12	40	55	102	353PU1090	h	353HPU1090	h
11.00	+0.025/+0.007	12	40	55	102	353PU1100	h	353HPU1100	h
11.10	+0.025/+0.007	12	40	55	102	353PU1110	h	353HPU1110	h
11.20	+0.025/+0.007	12	40	55	102	353PU1120	h	353HPU1120	h
11.30	+0.025/+0.007	12	40	55	102	353PU1130	h	353HPU1130	h	HSS DRILLS
11.40	+0.025/+0.007	12	40	55	102	353PU1140	h	353HPU1140	h
11.50	+0.025/+0.007	12	40	55	102	353PU1150	h	353HPU1150	h	LFTA
11.60	+0.025/+0.007	12	40	55	102	353PU1160	h	353HPU1160	h	SUTA HSS-HSS/CO
11.70	+0.025/+0.007	12	40	55	102	353PU1170	h	353HPU1170	h
11.80	+0.025/+0.007	12	40	55	102	353PU1180	h	353HPU1180	h
11.90	+0.025/+0.007	12	40	55	102	353PU1190	h	353HPU1190	h
12.00	+0.025/+0.007	12	40	55	102	353PU1200	h	353HPU1200	h
12.10	+0.025/+0.007	14	43	60	107	353PU1210	h	353HPU1210	h
12.20	+0.025/+0.007	14	43	60	107	353PU1220	h	353HPU1220	h
12.30	+0.025/+0.007	14	43	60	107	353PU1230	h	353HPU1230	h	CARBIDE
12.40	+0.025/+0.007	14	43	60	107	353PU1240	h	353HPU1240	h	END-MILLS
12.50	+0.025/+0.007	14	43	60	107	353PU1250	h	353HPU1250	h
12.60	+0.025/+0.007	14	43	60	107	353PU1260	h	353HPU1260	h	G2 MDTA
12.70	+0.025/+0.007	14	43	60	107	353PU1270	h	353HPU1270	h	HF VH/UP
12.80	+0.025/+0.007	14	43	60	107	353PU1280	h	353HPU1280	h	MEF
12.90	+0.025/+0.007	14	43	60	107	353PU1290	h	353HPU1290	h	ALU
13.00	+0.025/+0.007	14	43	60	107	353PU1300	h	353HPU1300	h	MEX/MH UH/MH
13.10	+0.025/+0.007	14	43	60	107	353PU1310	h	353HPU1310	h
13.20	+0.025/+0.007	14	43	60	107	353PU1320	h	353HPU1320	h
13.30	+0.025/+0.007	14	43	60	107	353PU1330	h	353HPU1330	h
13.40	+0.025/+0.007	14	43	60	107	353PU1340	h	353HPU1340	h
13.50	+0.025/+0.007	14	43	60	107	353PU1350	h	353HPU1350	h
13.60	+0.025/+0.007	14	43	60	107	353PU1360	h	353HPU1360	h
13.70	+0.025/+0.007	14	43	60	107	353PU1370	h	353HPU1370	h	HSS
13.80	+0.025/+0.007	14	43	60	107	353PU1380	h	353HPU1380	h	END-MILLS
13.90	+0.025/+0.007	14	43	60	107	353PU1390	h	353HPU1390	h
14.00	+0.025/+0.007	14	43	60	107	353PU1400	h	353HPU1400	h
14.10	+0.025/+0.007	16	45	65	115	353PU1410	h	353HPU1410	h
14.20	+0.025/+0.007	16	45	65	115	353PU1420	h	353HPU1420	h
14.30	+0.025/+0.007	16	45	65	115	353PU1430	h	353HPU1430	h
14.50	+0.025/+0.007	16	45	65	115	353PU1450	h	353HPU1450	h
14.60	+0.025/+0.007	16	45	65	115	353PU1460	h	353HPU1460	h
14.70	+0.025/+0.007	16	45	65	115	353PU1470	h			CARBIDE BURRS
