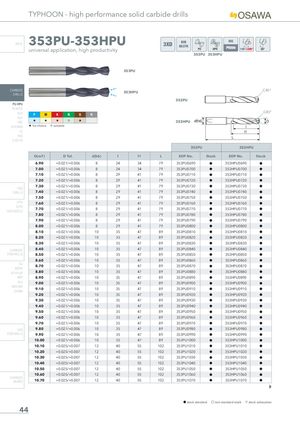

TYPHOON - high performance solid carbide drills

353PU-353HPU

3XD DIN INFO 6537K universal application, high productivity 140°+C45° 353PU 353HPU

353PU

CARBIDE DRILLS

PU-HPU

C45° 353HPU 353PU

P	M	K N	S H
H	H	H I	H	353HPU
H1st ch	oice	Isuitable

H 1st choice I suitable SUH MINI HL HSD C-SD-TA

							353PU		353HP	U
	D(m7)	D Tol.	d(h6)	l	l1	L	EDP No.	Stock	EDP No.	Stock
	6.90	+0.021/+0.006	8	24	34	79	353PU0690	h	353HPU0690	h
	7.00	+0.021/+0.006	8	24	34	79	353PU0700	h	353HPU0700	h
	7.10	+0.021/+0.006	8	29	41	79	353PU0710	h	353HPU0710	h
	7.20	+0.021/+0.006	8	29	41	79	353PU0720	h	353HPU0720	h
HSS	7.30	+0.021/+0.006	8	29	41	79	353PU0730	h	353HPU0730	h
DRILLS	7.40	+0.021/+0.006	8	29	41	79	353PU0740	h	353HPU0740	h
	7.50	+0.021/+0.006	8	29	41	79	353PU0750	h	353HPU0750	h
LFTA	7.60	+0.021/+0.006	8	29	41	79	353PU0760	h	353HPU0760	h
SUTA S-HSS/CO	7.70	+0.021/+0.006	8	29	41	79	353PU0770	h	353HPU0770	h
	7.80	+0.021/+0.006	8	29	41	79	353PU0780	h	353HPU0780	h
	7.90	+0.021/+0.006	8	29	41	79	353PU0790	h	353HPU0790	h
	8.00	+0.021/+0.006	8	29	41	79	353PU0800	h	353HPU0800	h
	8.10	+0.021/+0.006	10	35	47	89	353PU0810	h	353HPU0810	h
	8.20	+0.021/+0.006	10	35	47	89	353PU0820	h	353HPU0820	h
	8.30	+0.021/+0.006	10	35	47	89	353PU0830	h	353HPU0830	h
CARBIDE	8.40	+0.021/+0.006	10	35	47	89	353PU0840	h	353HPU0840	h
ND-MILLS	8.50	+0.021/+0.006	10	35	47	89	353PU0850	h	353HPU0850	h
	8.60	+0.021/+0.006	10	35	47	89	353PU0860	h	353HPU0860	h
G2 MDTA	8.70	+0.021/+0.006	10	35	47	89	353PU0870	h	353HPU0870	h
HF VH/UP	8.80	+0.021/+0.006	10	35	47	89	353PU0880	h	353HPU0880	h
MEF	8.90	+0.021/+0.006	10	35	47	89	353PU0890	h	353HPU0890	h
ALU	9.00	+0.021/+0.006	10	35	47	89	353PU0900	h	353HPU0900	h
MEX/MH H/MH	9.10	+0.021/+0.006	10	35	47	89	353PU0910	h	353HPU0910	h
U	9.20	+0.021/+0.006	10	35	47	89	353PU0920	h	353HPU0920	h
	9.30	+0.021/+0.006	10	35	47	89	353PU0930	h	353HPU0930	h
	9.40	+0.021/+0.006	10	35	47	89	353PU0940	h	353HPU0940	h
	9.50	+0.021/+0.006	10	35	47	89	353PU0950	h	353HPU0950	h
	9.60	+0.021/+0.006	10	35	47	89	353PU0960	h	353HPU0960	h
	9.70	+0.021/+0.006	10	35	47	89	353PU0970	h	353HPU0970	h
HSS	9.80	+0.021/+0.006	10	35	47	89	353PU0980	h	353HPU0980	h
ND-MILLS	9.90	+0.021/+0.006	10	35	47	89	353PU0990	h	353HPU0990	h
	10.00	+0.021/+0.006	10	35	47	89	353PU1000	h	353HPU1000	h
	10.10	+0.025/+0.007	12	40	55	102	353PU1010	h	353HPU1010	h
	10.20	+0.025/+0.007	12	40	55	102	353PU1020	h	353HPU1020	h
	10.30	+0.025/+0.007	12	40	55	102	353PU1030	h	353HPU1030	h
	10.40	+0.025/+0.007	12	40	55	102	353PU1040	h	353HPU1040	h
	10.50	+0.025/+0.007	12	40	55	102	353PU1050	h	353HPU1050	h
	10.60	+0.025/+0.007	12	40	55	102	353PU1060	h	353HPU1060	h
CARBIDE BURRS	10.70	+0.025/+0.007	12	40	55	102	353PU1070	h	353HPU1070	h
