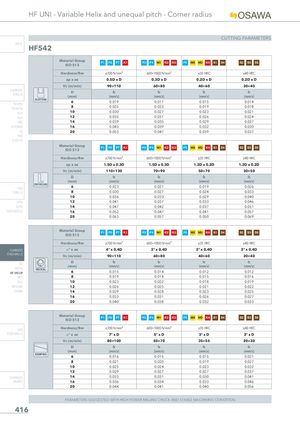

HF UNI - Variable Helix and unequal pitch - Corner radius

CUTTING PARAMETERS

	Material Group ISO 513	P1 P2 P7 K1	P3 P4 M1 K2 K3	P5 M2 M3 K4 S1 S4	S2 S3 S5
	Hardness/Rm	≤700 N/mm²	600÷1000 N/mm²	≤35 HRC	≤40 HRC
	ap x ae	0.5D x D	0.3D x D	0.2D x D	0.2D x D
	Vc (m/min)	90÷110	60÷80	40÷60	20÷40
	D (mm)	fz (mm/z)	fz (mm/z)	fz (mm/z)	fz (mm/z)
SLOTTING	6	0.019	0.017	0.015	0.014
	8	0.025	0.023	0.019	0.018
	10	0.030	0.027	0.023	0.021
	12	0.035	0.031	0.026	0.024
	14	0.039	0.035	0.029	0.027
	16	0.043	0.039	0.032	0.030
	20	0.053	0.047	0.039	0.037

HL 20 0.053 0.047 0.039 0.037

HSD C-SD-TA

	Material Group ISO 513	P1 P2 P7 K1	P3 P4 M1 K2 K3	P5 M2 M3 K4 S1 S4	S2 S3 S5
	Hardness/Rm	≤700 N/mm²	600÷1000 N/mm²	≤35 HRC	≤40 HRC
	ap x ae	1.5D x 0.3D	1.5D x 0.3D	1.2D x 0.2D	1.2D x 0.2D
	Vc (m/min)	110÷130	70÷90	50÷70	30÷50
	D (mm)	fz (mm/z)	fz (mm/z)	fz (mm/z)	fz (mm/z)
SIDE MILLING	6	0.023	0.021	0.019	0.026
	8	0.030	0.027	0.024	0.033
	10	0.036	0.033	0.029	0.040
	12	0.041	0.037	0.033	0.046
	14	0.047	0.042	0.037	0.051
	16	0.052	0.047	0.041	0.057
	20	0.063	0.057	0.050	0.069

Material Group		P1	P2	P7	K1	P3	P4	M1	K2	K3	P5	M2	M3	K4	S1	S4	S2	S3	S5
	ISO 513
Hardness/Rm			≤700 N/mm²				600÷1000 N/mm²						≤35 HRC				≤40 HRC

Material Group ISO 513	P1 P2 P7 K1	P3 P4 M1 K2 K3	P5 M2 M3 K4 S1 S4	S2 S3 S5
Hardness/Rm	≤700 N/mm²	600÷1000 N/mm²	≤35 HRC	≤40 HRC
° x ae	4° x 0.4D	3° x 0.4D	3° x 0.4D	2° x 0.4D
Vc (m/min)	90÷110	60÷80	40÷60	20÷40
D (mm)	fz (mm/z)	fz (mm/z)	fz (mm/z)	fz (mm/z)
6	0.015	0.014	0.012	0.012
8	0.019	0.018	0.015	0.016
10	0.023	0.022	0.018	0.019
12	0.026	0.025	0.021	0.022
14	0.029	0.028	0.023	0.025
16	0.033	0.031	0.026	0.027
20	0.040	0.038	0.032	0.033

CARBIDE END-MILLS

G2

HSS

END-MILLS	° x ae	7° x D	5° x D	3° x D	3° x D
	Vc (m/min)	80÷100	50÷70	35÷55	20÷30

	Material Group ISO 513	P1 P2 P7 K1	P3 P4 M1 K2 K3	P5 M2 M3 K4 S1 S4	S2 S3 S5
	Hardness/Rm	≤700 N/mm²	600÷1000 N/mm²	≤35 HRC	≤40 HRC
	° x ae	7° x D	5° x D	3° x D	3° x D
	Vc (m/min)	80÷100	50÷70	35÷55	20÷30
	D (mm)	fz (mm/z)	fz (mm/z)	fz (mm/z)	fz (mm/z)
RAMPING	6	0.016	0.015	0.015	0.021
	8	0.021	0.020	0.019	0.027
	10	0.025	0.024	0.023	0.032
	12	0.029	0.027	0.027	0.037
	14	0.033	0.031	0.030	0.041
	16	0.036	0.034	0.033	0.046
	20	0.044	0.041	0.040	0.056
