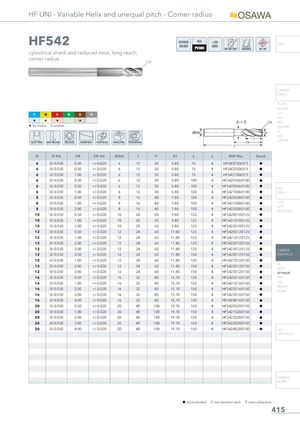

HF UNI - Variable Helix and unequal pitch - Corner radius
HF542
OSAWA NORM INFO cylindrical shank and reduced neck, long reach,
corner radius
CR
CARBIDE DRILLS
PU-HPU
| P H H1st choic | M K H H eIsuitable | N S H | H | CR | ALH HRC SUH MINI | |||||||
| SLOTTING | SIDE MILLING HE | LICAL RAMP | ING VERTICAL | DRILLING | TROCHOIDAL | HL HSD C-SD-TA | ||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock | |
| 6 | 0/-0.030 | 0.30 | +/-0.020 | 6 | 12 | 30 | 5.80 | 75 | 4 | HF5420306075 | h | |
| 6 | 0/-0.030 | 0.50 | +/-0.020 | 6 | 12 | 30 | 5.80 | 75 | 4 | HF5420506075 | h | |
| 6 | 0/-0.030 | 1.00 | +/-0.020 | 6 | 12 | 30 | 5.80 | 75 | 4 | HF5421006075 | h | |
| 6 | 0/-0.030 | 0.30 | +/-0.020 | 6 | 12 | 30 | 5.80 | 100 | 4 | HF54203060100 | h | |
| 6 | 0/-0.030 | 0.50 | +/-0.020 | 6 | 12 | 30 | 5.80 | 100 | 4 | HF54205060100 | h | HSS |
| 6 | 0/-0.030 | 1.00 | +/-0.020 | 6 | 12 | 30 | 5.80 | 100 | 4 | HF54210060100 | h | DRILLS |
| 8 | 0/-0.030 | 0.50 | +/-0.020 | 8 | 16 | 40 | 7.80 | 100 | 4 | HF54205080100 | h | |
| 8 | 0/-0.030 | 1.00 | +/-0.020 | 8 | 16 | 40 | 7.80 | 100 | 4 | HF54210080100 | h | LFTA SUTA |
| 8 | 0/-0.030 | 2.00 | +/-0.020 | 8 | 16 | 40 | 7.80 | 100 | 4 | HF54220080100 | h | HSS-HSS/CO |
| 10 | 0/-0.030 | 0.50 | +/-0.020 | 10 | 20 | 50 | 9.80 | 125 | 4 | HF54205100125 | h | |
| 10 | 0/-0.030 | 1.00 | +/-0.020 | 10 | 20 | 50 | 9.80 | 125 | 4 | HF54210100125 | h | |
| 10 | 0/-0.030 | 2.00 | +/-0.020 | 10 | 20 | 50 | 9.80 | 125 | 4 | HF54220100125 | h | |
| 12 | 0/-0.030 | 0.50 | +/-0.020 | 12 | 24 | 60 | 11.80 | 125 | 4 | HF54205120125 | h | |
| 12 | 0/-0.030 | 1.00 | +/-0.020 | 12 | 24 | 60 | 11.80 | 125 | 4 | HF54210120125 | h | |
| 12 | 0/-0.030 | 2.00 | +/-0.020 | 12 | 24 | 60 | 11.80 | 125 | 4 | HF54220120125 | h | |
| 12 | 0/-0.030 | 3.00 | +/-0.020 | 12 | 24 | 60 | 11.80 | 125 | 4 | HF54230120125 | h | CARBIDE |
| 12 | 0/-0.030 | 0.50 | +/-0.020 | 12 | 24 | 60 | 11.80 | 150 | 4 | HF54205120150 | h | END-MILLS |
| 12 | 0/-0.030 | 1.00 | +/-0.020 | 12 | 24 | 60 | 11.80 | 150 | 4 | HF54210120150 | h | |
| 12 | 0/-0.030 | 2.00 | +/-0.020 | 12 | 24 | 60 | 11.80 | 150 | 4 | HF54220120150 | h | G2 MDTA |
| 12 | 0/-0.030 | 3.00 | +/-0.020 | 12 | 24 | 60 | 11.80 | 150 | 4 | HF54230120150 | h | HF VH/UP |
| 16 | 0/-0.030 | 0.50 | +/-0.020 | 16 | 32 | 80 | 15.70 | 150 | 4 | HF54205160150 | h | MEF |
| 16 | 0/-0.030 | 1.00 | +/-0.020 | 16 | 32 | 80 | 15.70 | 150 | 4 | HF54210160150 | h | ALU |
| 16 | 0/-0.030 | 2.00 | +/-0.020 | 16 | 32 | 80 | 15.70 | 150 | 4 | HF54220160150 | h | MEX/MH UH/MH |
| 16 | 0/-0.030 | 3.00 | +/-0.020 | 16 | 32 | 80 | 15.70 | 150 | 4 | HF54230160150 | h | |
| 16 | 0/-0.030 | 4.00 | +/-0.020 | 16 | 32 | 80 | 15.70 | 150 | 4 | HF54240160150 | h | |
| 20 | 0/-0.030 | 0.50 | +/-0.020 | 20 | 40 | 100 | 19.70 | 150 | 4 | HF54205200150 | h | |
| 20 | 0/-0.030 | 1.00 | +/-0.020 | 20 | 40 | 100 | 19.70 | 150 | 4 | HF54210200150 | h | |
| 20 | 0/-0.030 | 2.00 | +/-0.020 | 20 | 40 | 100 | 19.70 | 150 | 4 | HF54220200150 | h | |
| 20 | 0/-0.030 | 3.00 | +/-0.020 | 20 | 40 | 100 | 19.70 | 150 | 4 | HF54230200150 | h | |
| 20 | 0/-0.030 | 4.00 | +/-0.020 | 20 | 40 | 100 | 19.70 | 150 | 4 | HF54240200150 | h | HSS END-MILLS |
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
