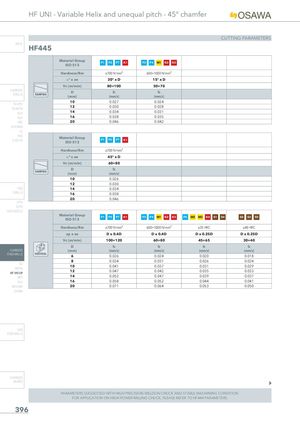

HF UNI - Variable Helix and unequal pitch - 45° chamfer
INFO
CARBIDE DRILLS PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
HSS DRILLS
LFTA SUTA HSS-HSS/CO
CARBIDE END-MILLS
G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH
HF445
RAMPING
RAMPING
VERTICAL
CUTTING PARAMETERS
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²
| ° x ae | 30° x D | 15° x D |
| Vc (m/min) | 80÷100 | 50÷70 |
| D | fz | fz |
| (mm) | (mm/z) | (mm/z) |
| 10 | 0.027 | 0.024 |
| 12 | 0.030 | 0.028 |
| 14 | 0.034 | 0.031 |
| 16 | 0.038 | 0.035 |
| 20 | 0.046 | 0.042 |
Material Group P1 P2 P7 K1
ISO 513 Hardness/Rm ≤700 N/mm² ° x ae 45° x D Vc (m/min) 60÷80 D fz (mm) (mm/z) 10 0.026 12 0.030 14 0.034 16 0.038 20 0.046
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x 0.4D | D x 0.4D | D x 0.25D | D x 0.25D | ||
| Vc (m/min) | 100÷120 | 60÷80 | 45÷65 | 30÷40 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 6 | 0.026 | 0.024 | 0.020 | 0.018 |
| 8 | 0.034 | 0.031 | 0.026 | 0.024 |
| 10 | 0.041 | 0.037 | 0.031 | 0.029 |
| 12 | 0.047 | 0.042 | 0.035 | 0.033 |
| 14 | 0.052 | 0.047 | 0.039 | 0.037 |
| 16 | 0.058 | 0.052 | 0.044 | 0.041 |
| 20 | 0.071 | 0.064 | 0.053 | 0.050 |
HSS END-MILLS
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF444 PARAMETERS.
