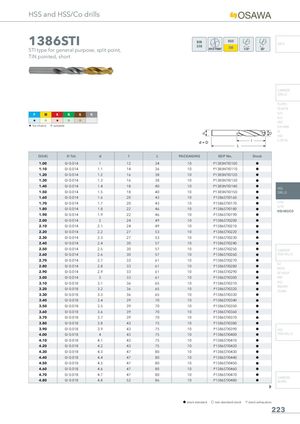

Общий каталог Osawa 2021 - страница 224
Навигация
Общий каталог Osawa 2018
HSS and HSS/Co drills
1386STI
STI type for general purpose, split point,
TiN pointed, short
DIN 338 INFO
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H I | H I | I |
| H1st choiceI | suitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h8) | D Tol. | d | l | L | PACKAGING | EDP No. | Stock | |
| 1.00 | 0/-0.014 | 1 | 12 | 34 | 10 | P1385NTI0100 | h | |
| 1.10 | 0/-0.014 | 1.1 | 14 | 36 | 10 | P1385NTI0110 | h | |
| 1.20 | 0/-0.014 | 1.2 | 16 | 38 | 10 | P1385NTI0120 | h | |
| 1.30 | 0/-0.014 | 1.3 | 16 | 38 | 10 | P1385NTI0130 | h | |
| 1.40 | 0/-0.014 | 1.4 | 18 | 40 | 10 | P1385NTI0140 | h | HSS |
| 1.50 | 0/-0.014 | 1.5 | 18 | 40 | 10 | P1385NTI0150 | h | DRILLS |
| 1.60 | 0/-0.014 | 1.6 | 20 | 43 | 10 | P1386STI0160 | h | |
| 1.70 | 0/-0.014 | 1.7 | 20 | 43 | 10 | P1386STI0170 | h | LFTA SUTA |
| 1.80 | 0/-0.014 | 1.8 | 22 | 46 | 10 | P1386STI0180 | h | HSS-HSS/C |
| 1.90 | 0/-0.014 | 1.9 | 22 | 46 | 10 | P1386STI0190 | h | |
| 2.00 | 0/-0.014 | 2 | 24 | 49 | 10 | P1386STI0200 | h | |
| 2.10 | 0/-0.014 | 2.1 | 24 | 49 | 10 | P1386STI0210 | h | |
| 2.20 | 0/-0.014 | 2.2 | 27 | 53 | 10 | P1386STI0220 | h | |
| 2.30 | 0/-0.014 | 2.3 | 27 | 53 | 10 | P1386STI0230 | h | |
| 2.40 | 0/-0.014 | 2.4 | 30 | 57 | 10 | P1386STI0240 | h | |
| 2.50 | 0/-0.014 | 2.5 | 30 | 57 | 10 | P1386STI0250 | h | CARBIDE |
| 2.60 | 0/-0.014 | 2.6 | 30 | 57 | 10 | P1386STI0260 | h | END-MILLS |
| 2.70 | 0/-0.014 | 2.7 | 33 | 61 | 10 | P1386STI0270 | h | |
| 2.80 | 0/-0.014 | 2.8 | 33 | 61 | 10 | P1386STI0280 | h | G2 MDTA |
| 2.90 | 0/-0.014 | 2.9 | 33 | 61 | 10 | P1386STI0290 | h | HF VH/UP |
| 3.00 | 0/-0.014 | 3 | 33 | 61 | 10 | P1386STI0300 | h | MEF |
| 3.10 | 0/-0.018 | 3.1 | 36 | 65 | 10 | P1386STI0310 | h | ALU |
| 3.20 | 0/-0.018 | 3.2 | 36 | 65 | 10 | P1386STI0320 | h | MEX/MH UH/MH |
| 3.30 | 0/-0.018 | 3.3 | 36 | 65 | 10 | P1386STI0330 | h | |
| 3.40 | 0/-0.018 | 3.4 | 39 | 70 | 10 | P1386STI0340 | h | |
| 3.50 | 0/-0.018 | 3.5 | 39 | 70 | 10 | P1386STI0350 | h | |
| 3.60 | 0/-0.018 | 3.6 | 39 | 70 | 10 | P1386STI0360 | h | |
| 3.70 | 0/-0.018 | 3.7 | 39 | 70 | 10 | P1386STI0370 | h | |
| 3.80 | 0/-0.018 | 3.8 | 43 | 75 | 10 | P1386STI0380 | h | |
| 3.90 | 0/-0.018 | 3.9 | 43 | 75 | 10 | P1386STI0390 | h | HSS |
| 4.00 | 0/-0.018 | 4 | 43 | 75 | 10 | P1386STI0400 | h | END-MILLS |
| 4.10 | 0/-0.018 | 4.1 | 43 | 75 | 10 | P1386STI0410 | h | |
| 4.20 | 0/-0.018 | 4.2 | 43 | 75 | 10 | P1386STI0420 | h | |
| 4.30 | 0/-0.018 | 4.3 | 47 | 80 | 10 | P1386STI0430 | h | |
| 4.40 | 0/-0.018 | 4.4 | 47 | 80 | 10 | P1386STI0440 | h | |
| 4.50 | 0/-0.018 | 4.5 | 47 | 80 | 10 | P1386STI0450 | h | |
| 4.60 | 0/-0.018 | 4.6 | 47 | 80 | 10 | P1386STI0460 | h | |
| 4.70 | 0/-0.018 | 4.7 | 47 | 80 | 10 | P1386STI0470 | h | |
| 4.80 | 0/-0.018 | 4.8 | 52 | 86 | 10 | P1386STI0480 | h | CARBIDE BURRS |
