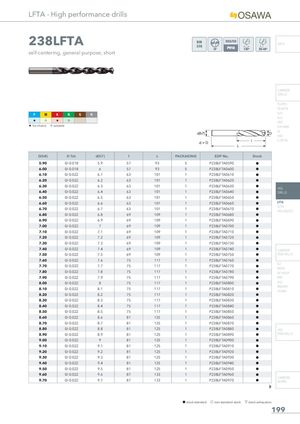

Общий каталог Osawa 2021 - страница 200
Навигация
Общий каталог Osawa 2018
LFTA - High performance drills
238LFTA
self-centering, general purpose, short
DIN 338 INFO
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H I | H I | |
| H1st choiceI | suitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h8) | D Tol. | d(h7) | l | L | PACKAGING | EDP No. | Stock | |
| 5.90 | 0/-0.018 | 5.9 | 57 | 93 | 5 | P238LFTA0590 | h | |
| 6.00 | 0/-0.018 | 6 | 57 | 93 | 5 | P238LFTA0600 | h | |
| 6.10 | 0/-0.022 | 6.1 | 63 | 101 | 1 | P238LFTA0610 | h | |
| 6.20 | 0/-0.022 | 6.2 | 63 | 101 | 1 | P238LFTA0620 | h | |
| 6.30 | 0/-0.022 | 6.3 | 63 | 101 | 1 | P238LFTA0630 | h | HSS |
| 6.40 | 0/-0.022 | 6.4 | 63 | 101 | 1 | P238LFTA0640 | h | DRILLS |
| 6.50 | 0/-0.022 | 6.5 | 63 | 101 | 1 | P238LFTA0650 | h | |
| 6.60 | 0/-0.022 | 6.6 | 63 | 101 | 1 | P238LFTA0660 | h | LFTA |
| 6.70 | 0/-0.022 | 6.7 | 63 | 101 | 1 | P238LFTA0670 | h | SUTA HSS-HSS/CO |
| 6.80 | 0/-0.022 | 6.8 | 69 | 109 | 1 | P238LFTA0680 | h | |
| 6.90 | 0/-0.022 | 6.9 | 69 | 109 | 1 | P238LFTA0690 | h | |
| 7.00 | 0/-0.022 | 7 | 69 | 109 | 1 | P238LFTA0700 | h | |
| 7.10 | 0/-0.022 | 7.1 | 69 | 109 | 1 | P238LFTA0710 | h | |
| 7.20 | 0/-0.022 | 7.2 | 69 | 109 | 1 | P238LFTA0720 | h | |
| 7.30 | 0/-0.022 | 7.3 | 69 | 109 | 1 | P238LFTA0730 | h | |
| 7.40 | 0/-0.022 | 7.4 | 69 | 109 | 1 | P238LFTA0740 | h | CARBIDE |
| 7.50 | 0/-0.022 | 7.5 | 69 | 109 | 1 | P238LFTA0750 | h | END-MILLS |
| 7.60 | 0/-0.022 | 7.6 | 75 | 117 | 1 | P238LFTA0760 | h | |
| 7.70 | 0/-0.022 | 7.7 | 75 | 117 | 1 | P238LFTA0770 | h | G2 MDTA |
| 7.80 | 0/-0.022 | 7.8 | 75 | 117 | 1 | P238LFTA0780 | h | HF VH/UP |
| 7.90 | 0/-0.022 | 7.9 | 75 | 117 | 1 | P238LFTA0790 | h | MEF |
| 8.00 | 0/-0.022 | 8 | 75 | 117 | 1 | P238LFTA0800 | h | ALU |
| 8.10 | 0/-0.022 | 8.1 | 75 | 117 | 1 | P238LFTA0810 | h | MEX/MH UH/MH |
| 8.20 | 0/-0.022 | 8.2 | 75 | 117 | 1 | P238LFTA0820 | h | |
| 8.30 | 0/-0.022 | 8.3 | 75 | 117 | 1 | P238LFTA0830 | h | |
| 8.40 | 0/-0.022 | 8.4 | 75 | 117 | 1 | P238LFTA0840 | h | |
| 8.50 | 0/-0.022 | 8.5 | 75 | 117 | 1 | P238LFTA0850 | h | |
| 8.60 | 0/-0.022 | 8.6 | 81 | 125 | 1 | P238LFTA0860 | h | |
| 8.70 | 0/-0.022 | 8.7 | 81 | 125 | 1 | P238LFTA0870 | h | |
| 8.80 | 0/-0.022 | 8.8 | 81 | 125 | 1 | P238LFTA0880 | h | HSS |
| 8.90 | 0/-0.022 | 8.9 | 81 | 125 | 1 | P238LFTA0890 | h | END-MILLS |
| 9.00 | 0/-0.022 | 9 | 81 | 125 | 1 | P238LFTA0900 | h | |
| 9.10 | 0/-0.022 | 9.1 | 81 | 125 | 1 | P238LFTA0910 | h | |
| 9.20 | 0/-0.022 | 9.2 | 81 | 125 | 1 | P238LFTA0920 | h | |
| 9.30 | 0/-0.022 | 9.3 | 81 | 125 | 1 | P238LFTA0930 | h | |
| 9.40 | 0/-0.022 | 9.4 | 81 | 125 | 1 | P238LFTA0940 | h | |
| 9.50 | 0/-0.022 | 9.5 | 81 | 125 | 1 | P238LFTA0950 | h | |
| 9.60 | 0/-0.022 | 9.6 | 87 | 133 | 1 | P238LFTA0960 | h | |
| 9.70 | 0/-0.022 | 9.7 | 87 | 133 | 1 | P238LFTA0970 | h | CARBIDE BURRS |
