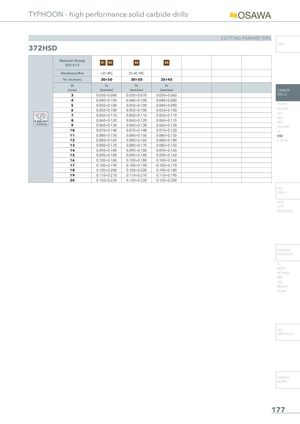

TYPHOON - high performance solid carbide drills
CUTTING PARAMETERS
| Material Group ISO 513 | S1 S2 | S3 | S5 | |
| Hardness/Rm | 35÷45 HRC | |||
| Vc (m/min) | 30÷50 | 30÷50 | 25÷45 | |
| D (mm) | fn (mm/rev) | fn (mm/rev) | fn (mm/rev) | |
| 3 | 0.030÷0.080 | 0.030÷0.070 | 0.030÷0.060 | |
| 4 | 0.040÷0.100 | 0.040÷0.100 | 0.040÷0.080 | |
| 5 | 0.050÷0.100 | 0.050÷0.100 | 0.040÷0.090 | |
| 6 | 0.050÷0.100 | 0.050÷0.100 | 0.050÷0.100 | |
| 7 | 0.050÷0.110 | 0.050÷0.110 | 0.050÷0.110 | |
| Ø RUN OUT | 8 | 0.060÷0.120 | 0.060÷0.120 | 0.060÷0.110 |
| 9 | 0.060÷0.130 | 0.060÷0.130 | 0.060÷0.120 | |
| 10 | 0.070÷0.140 | 0.070÷0.140 | 0.070÷0.120 | |
| 11 | 0.080÷0.150 | 0.080÷0.150 | 0.080÷0.130 | |
| 12 | 0.080÷0.160 | 0.080÷0.160 | 0.080÷0.140 | |
| 13 | 0.080÷0.170 | 0.080÷0.170 | 0.080÷0.150 | |
| 14 | 0.090÷0.180 | 0.090÷0.180 | 0.090÷0.160 | |
| 15 | 0.090÷0.180 | 0.090÷0.180 | 0.090÷0.160 | |
| 16 | 0.100÷0.180 | 0.100÷0.180 | 0.100÷0.160 | |
| 17 | 0.100÷0.190 | 0.100÷0.190 | 0.100÷0.170 | |
| 18 | 0.100÷0.200 | 0.100÷0.200 | 0.100÷0.180 | |
| 19 | 0.110÷0.210 | 0.110÷0.210 | 0.110÷0.190 | |
| 20 | 0.120÷0.220 | 0.120÷0.220 | 0.120÷0.200 |
