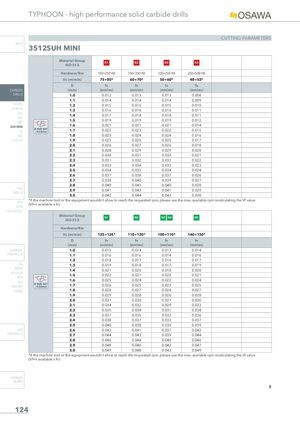

TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 3512SUH MINI Material GroupISO 513 K1 K2 K3 K4 Hardness/Rm 150÷250 HB 150÷350 HB 120÷260 HB 250÷500 HB Vc (m/min) 75÷85* 60÷70* 50÷60* 48÷52* D fn fn fn fn CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) DRILLS 1.0 0.012 0.013 0.013 0.008 1.1 0.014 0.014 0.014 0.009 PU-HPU 1.2 0.015 0.015 0.015 0.010 TA-4HTA 1.3 0.016 0.016 0.016 0.011 SUH 1.4 0.017 0.018 0.018 0.011 ALH HRC 1.5 0.019 0.019 0.019 0.012 SUH MINI 1.6 0.021 0.021 0.021 0.014 Ø RUN OUTHL<0.02mm 1.7 0.022 0.023 0.022 0.015 HSD 1.8 0.023 0.024 0.024 0.016 C-SD-TA 1.9 0.025 0.025 0.025 0.017 2.0 0.026 0.027 0.026 0.018 2.1 0.028 0.029 0.029 0.020 2.2 0.030 0.031 0.030 0.021 2.3 0.031 0.032 0.032 0.022 2.4 0.033 0.034 0.033 0.023 2.5 0.034 0.035 0.034 0.024 2.6 0.037 0.038 0.037 0.026 2.7 0.038 0.040 0.039 0.027 2.8 0.040 0.041 0.040 0.028 HSSDRILLS 2.9 0.041 0.043 0.041 0.029 3.0 0.042 0.044 0.043 0.030 LFTASUTA*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value(Vf=n available x fn) HSS-HSS/CO Material Group N1 N2 N3 N4 N5 ISO 513 Hardness/Rm Vc (m/min) 125÷135* 110÷120* 100÷110* 140÷150* D fn fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE 1.0 0.015 0.014 0.013 0.014 END-MILLS 1.1 0.016 0.016 0.014 0.016 1.2 0.018 0.017 0.016 0.017 G2 1.3 0.019 0.018 0.017 0.019 MDTA 1.4 0.021 0.020 0.018 0.020 HF VH/UPMEF 1.5 0.022 0.021 0.020 0.021 ALU Ø RUN OUTMEX/MH<0.02mm1.61.7 0.025 0.024 0.022 0.0240.0260.0250.0230.025 UH/MH 1.8 0.028 0.027 0.024 0.027 1.9 0.029 0.028 0.026 0.028 2.0 0.031 0.030 0.027 0.030 2.1 0.034 0.032 0.029 0.033 2.2 0.035 0.034 0.031 0.034 2.3 0.037 0.035 0.032 0.036 2.4 0.038 0.037 0.033 0.037 2.5 0.040 0.038 0.035 0.039 HSS 2.6 0.043 0.041 0.037 0.042 END-MILLS 2.7 0.044 0.043 0.039 0.044 2.8 0.046 0.044 0.040 0.046 2.9 0.048 0.046 0.042 0.047 3.0 0.049 0.048 0.043 0.049 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value (Vf=n available x fn) CARBIDE BURRS 124
