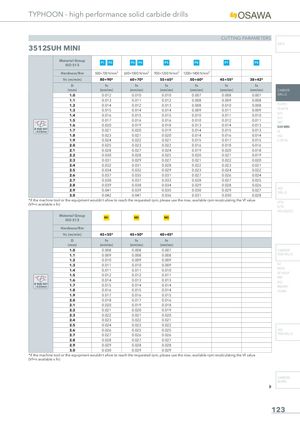

TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 3512SUH MINI Material Group P1 P2 P3 P4 P5 P6 P7 P8 ISO 513 Hardness/Rm 500÷700 N/mm² 600÷1000 N/mm² 900÷1200 N/mm² 1200÷1400 N/mm² Vc (m/min) 80÷90* 60÷70* 55÷65* 50÷60* 45÷55* 38÷42* D fn fn fn fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE 1.0 0.012 0.010 0.010 0.007 0.008 0.007 DRILLS 1.1 0.013 0.011 0.012 0.008 0.009 0.008 1.2 0.014 0.012 0.013 0.008 0.010 0.008 PU-HPU TA-4HTA 1.3 0.015 0.014 0.014 0.009 0.011 0.009 SUH 1.4 0.016 0.015 0.015 0.010 0.011 0.010 ALH 1.5 0.017 0.016 0.016 0.010 0.012 0.011 HRC 1.6 0.020 0.019 0.018 0.013 0.014 0.013 SUH MINI Ø RUN OUT 1.7 0.021 0.020 0.019 0.014 0.015 0.013 <0.02mm HL 1.8 0.023 0.021 0.020 0.014 0.016 0.014 HSD 1.9 0.024 0.022 0.021 0.015 0.017 0.015 C-SD-TA 2.0 0.025 0.023 0.022 0.016 0.018 0.016 2.1 0.028 0.027 0.024 0.019 0.020 0.018 2.2 0.030 0.028 0.025 0.020 0.021 0.019 2.3 0.031 0.029 0.027 0.021 0.022 0.020 2.4 0.032 0.031 0.028 0.022 0.023 0.021 2.5 0.034 0.032 0.029 0.023 0.024 0.022 2.6 0.037 0.035 0.031 0.027 0.026 0.024 2.7 0.038 0.037 0.033 0.028 0.027 0.025 2.8 0.039 0.038 0.034 0.029 0.028 0.026 HSS 2.9 0.041 0.039 0.035 0.030 0.029 0.027 DRILLS 3.0 0.042 0.041 0.036 0.031 0.030 0.028 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA (Vf=n available x fn) SUTA HSS-HSS/CO Material Group M1 M2 M3 ISO 513 Hardness/Rm Vc (m/min) 45÷55* 45÷50* 40÷45* D fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) 1.0 0.008 0.008 0.007 CARBIDE 1.1 0.009 0.008 0.008 END-MILLS 1.2 0.010 0.009 0.009 1.3 0.011 0.010 0.009 G2 MDTA 1.4 0.011 0.011 0.010 HF VH/UP 1.5 0.012 0.012 0.011 MEF 1.6 0.014 0.013 0.013 ALU Ø RUN OUT 1.7 0.015 0.014 0.014 <0.02mm MEX/MH 1.8 0.016 0.015 0.014 UH/MH 1.9 0.017 0.016 0.015 2.0 0.018 0.017 0.016 2.1 0.020 0.019 0.018 2.2 0.021 0.020 0.019 2.3 0.022 0.021 0.020 2.4 0.023 0.022 0.021 2.5 0.024 0.023 0.022 2.6 0.026 0.025 0.025 HSS 2.7 0.027 0.026 0.026 END-MILLS 2.8 0.028 0.027 0.027 2.9 0.029 0.028 0.028 3.0 0.030 0.029 0.029 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value (Vf=n available x fn) CARBIDE BURRS 123 Libro 1.indb 123 21/10/2021 12:08:44
