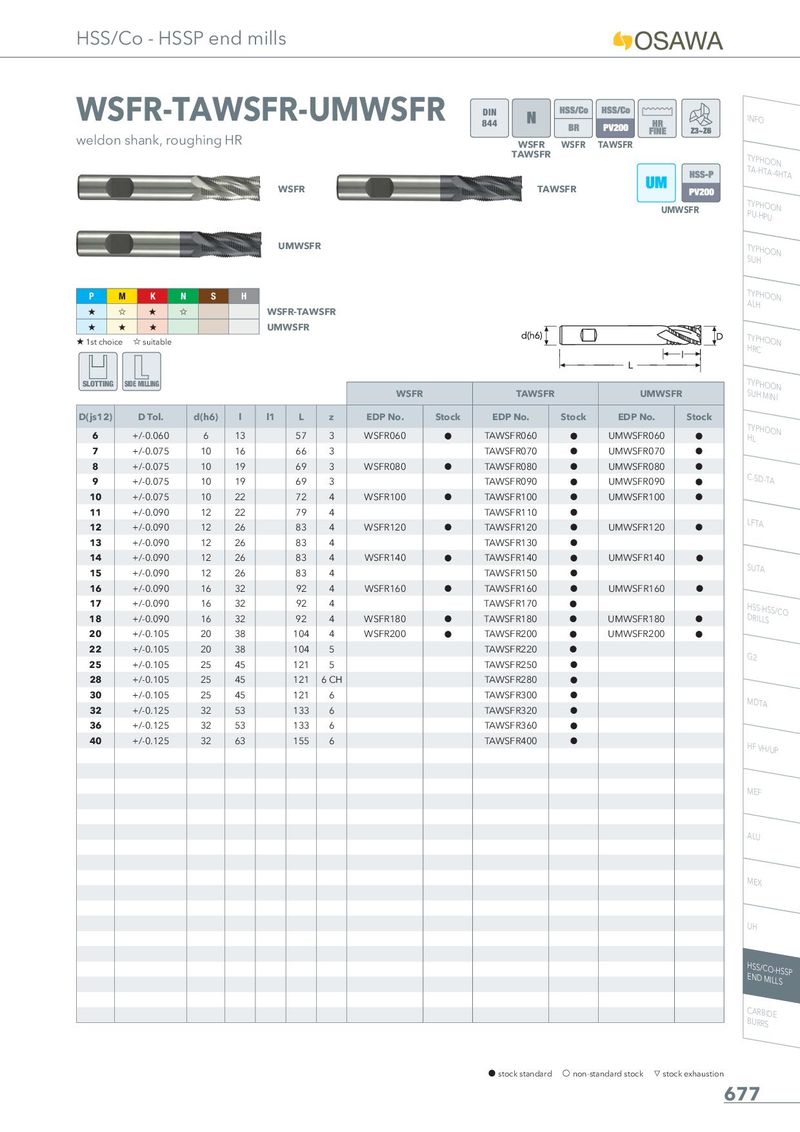

WSFR-TAWSFR-UMWSFR

DIN 844

weldon shank, roughing HR

WSFR WSFR TAWSFR

TAWSFR

WSFR TAWSFR UMWSFR

UMWSFR

P	M	K	N	S	H
+	,	+	,			WSFR-TAWSFR
+	+	+				UMWSFR

1st choice suitable

SLOTTING SIDE MILLING

WSFR TAWSFR UMWSFR

D(js12)	D Tol.	d(h6)	l	l1 L	z	EDP No.	Stock	EDP No.	Stock	EDP No.	Stock
6	+/-0.060	6	13	57	3	WSFR060	h	TAWSFR060	h	UMWSFR060	h
7	+/-0.075	10	16	66	3			TAWSFR070	h	UMWSFR070	h
8	+/-0.075	10	19	69	3	WSFR080	h	TAWSFR080	h	UMWSFR080	h
9	+/-0.075	10	19	69	3			TAWSFR090	h	UMWSFR090	h
10	+/-0.075	10	22	72	4	WSFR100	h	TAWSFR100	h	UMWSFR100	h
11	+/-0.090	12	22	79	4			TAWSFR110	h
12	+/-0.090	12	26	83	4	WSFR120	h	TAWSFR120	h	UMWSFR120	h
13	+/-0.090	12	26	83	4			TAWSFR130	h
14	+/-0.090	12	26	83	4	WSFR140	h	TAWSFR140	h	UMWSFR140	h
15	+/-0.090	12	26	83	4			TAWSFR150	h
16	+/-0.090	16	32	92	4	WSFR160	h	TAWSFR160	h	UMWSFR160	h
17	+/-0.090	16	32	92	4			TAWSFR170	h
18	+/-0.090	16	32	92	4	WSFR180	h	TAWSFR180	h	UMWSFR180	h
20	+/-0.105	20	38	104	4	WSFR200	h	TAWSFR200	h	UMWSFR200	h
22	+/-0.105	20	38	104	5			TAWSFR220	h
25	+/-0.105	25	45	121	5			TAWSFR250	h
28	+/-0.105	25	45	121	6 CH			TAWSFR280	h
30	+/-0.105	25	45	121	6			TAWSFR300	h
32	+/-0.125	32	53	133	6			TAWSFR320	h
36	+/-0.125	32	53	133	6			TAWSFR360	h
40	+/-0.125	32	63	155	6			TAWSFR400	h
