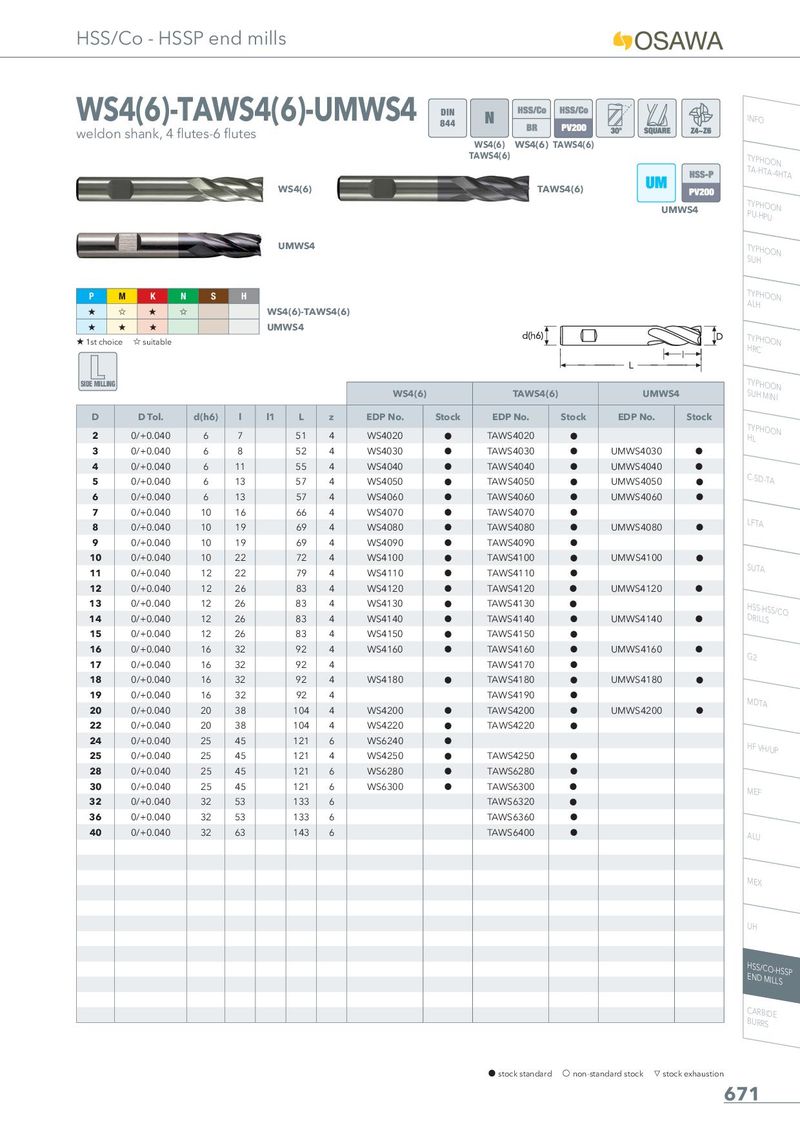

Общий каталог Osawa 2018 - страница 673

Общий каталог Osawa 2021

Общий каталог Osawa 2021

WS4(6)-TAWS4(6)-UMWS4

DIN 844

weldon shank, 4 flutes-6 flutes

WS4(6) WS4(6) TAWS4(6) TAWS4(6)( )

WS4(6) TAWS4(6) UMWS4

UMWS4

P	M	K	N	S	H
+	,	+	,			WS4(6)-TAWS4(6)
+	+	+				UMWS4

1st choice suitable

SIDE MILLING

WS4(6) TAWS4(6) UMWS4

D	D Tol.	d(h6)	l	l1 L	z	EDP No.	Stock	EDP No.	Stock	EDP No.	Stock
2	0/+0.040	6	7	51	4	WS4020	h	TAWS4020	h
3	0/+0.040	6	8	52	4	WS4030	h	TAWS4030	h	UMWS4030	h
4	0/+0.040	6	11	55	4	WS4040	h	TAWS4040	h	UMWS4040	h
5	0/+0.040	6	13	57	4	WS4050	h	TAWS4050	h	UMWS4050	h
6	0/+0.040	6	13	57	4	WS4060	h	TAWS4060	h	UMWS4060	h
7	0/+0.040	10	16	66	4	WS4070	h	TAWS4070	h
8	0/+0.040	10	19	69	4	WS4080	h	TAWS4080	h	UMWS4080	h
9	0/+0.040	10	19	69	4	WS4090	h	TAWS4090	h
10	0/+0.040	10	22	72	4	WS4100	h	TAWS4100	h	UMWS4100	h
11	0/+0.040	12	22	79	4	WS4110	h	TAWS4110	h
12	0/+0.040	12	26	83	4	WS4120	h	TAWS4120	h	UMWS4120	h
13	0/+0.040	12	26	83	4	WS4130	h	TAWS4130	h
14	0/+0.040	12	26	83	4	WS4140	h	TAWS4140	h	UMWS4140	h
15	0/+0.040	12	26	83	4	WS4150	h	TAWS4150	h
16	0/+0.040	16	32	92	4	WS4160	h	TAWS4160	h	UMWS4160	h
17	0/+0.040	16	32	92	4			TAWS4170	h
18	0/+0.040	16	32	92	4	WS4180	h	TAWS4180	h	UMWS4180	h
19	0/+0.040	16	32	92	4			TAWS4190	h
20	0/+0.040	20	38	104	4	WS4200	h	TAWS4200	h	UMWS4200	h
22	0/+0.040	20	38	104	4	WS4220	h	TAWS4220	h
24	0/+0.040	25	45	121	6	WS6240	h
25	0/+0.040	25	45	121	4	WS4250	h	TAWS4250	h
28	0/+0.040	25	45	121	6	WS6280	h	TAWS6280	h
30	0/+0.040	25	45	121	6	WS6300	h	TAWS6300	h
32	0/+0.040	32	53	133	6			TAWS6320	h
36	0/+0.040	32	53	133	6			TAWS6360	h
40	0/+0.040	32	63	143	6			TAWS6400	h
