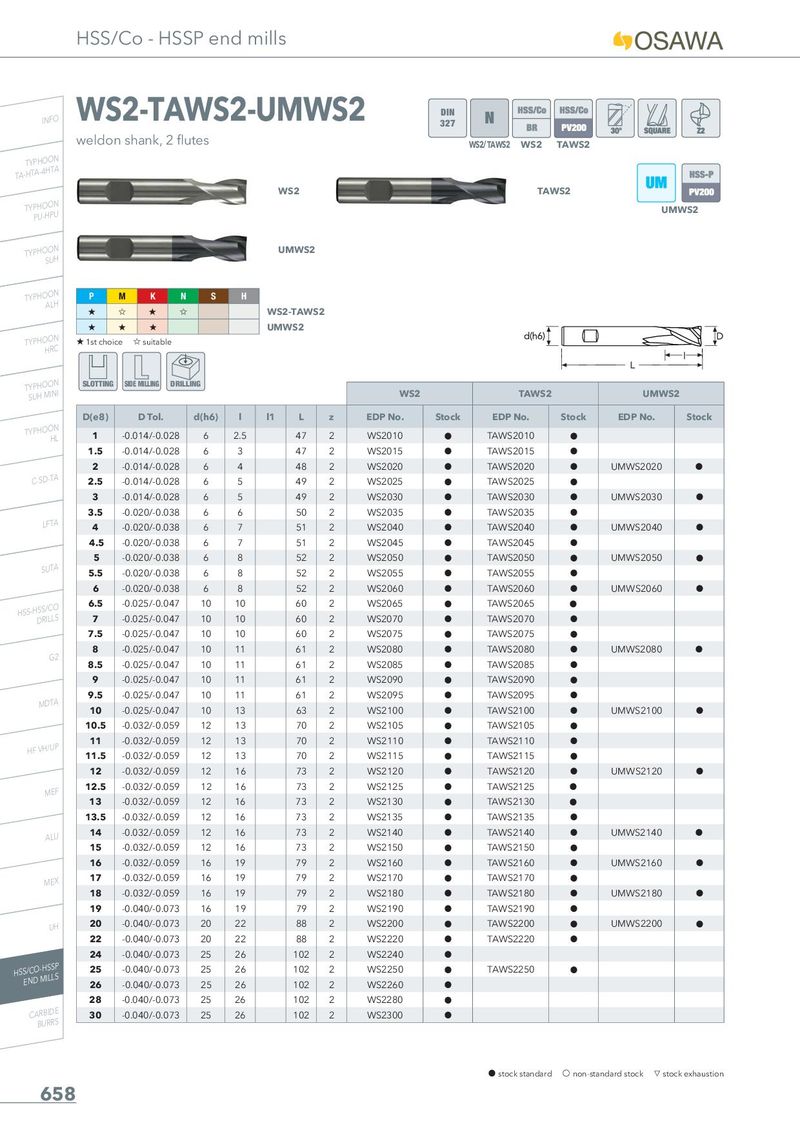

HSS/Co - HSSP end mills INFO WS2-TAWS2-UMWS2 DIN 327 weldon shank, 2 flutes WS2/ TAWS2 WS2 TAWS2 TA-THYTPAH-4OHOTNA WS2 TAWS2 TYPPHUO-HOPNU UMWS2 TYPHOSOUNH UMWS2 TYPHOAOLNH P M K N S H + , + , WS2-TAWS2 + + + UMWS2 TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI SLOTTING SIDE MILLING DRILLING WS2 TAWS2 UMWS2 D(e8) D Tol. d(h6) l l1 L z EDP No. Stock EDP No. Stock EDP No. Stock TYPHOOHNL 1 -0.014/-0.028 6 2.5 47 2 WS2010 h TAWS2010 h 1.5 -0.014/-0.028 6 3 47 2 WS2015 h TAWS2015 h 2 -0.014/-0.028 6 4 48 2 WS2020 h TAWS2020 h UMWS2020 h C-SD-TA 2.5 -0.014/-0.028 6 5 49 2 WS2025 h TAWS2025 h 3 -0.014/-0.028 6 5 49 2 WS2030 h TAWS2030 h UMWS2030 h 3.5 -0.020/-0.038 6 6 50 2 WS2035 h TAWS2035 h LFTA 4 -0.020/-0.038 6 7 51 2 WS2040 h TAWS2040 h UMWS2040 h 4.5 -0.020/-0.038 6 7 51 2 WS2045 h TAWS2045 h 5 -0.020/-0.038 6 8 52 2 WS2050 h TAWS2050 h UMWS2050 h SUTA 5.5 -0.020/-0.038 6 8 52 2 WS2055 h TAWS2055 h 6 -0.020/-0.038 6 8 52 2 WS2060 h TAWS2060 h UMWS2060 h HSS-HDSSR/ILCLOS 6.5 -0.025/-0.047 10 10 60 2 WS2065 h TAWS2065 h 7 -0.025/-0.047 10 10 60 2 WS2070 h TAWS2070 h 7.5 -0.025/-0.047 10 10 60 2 WS2075 h TAWS2075 h G2 8 -0.025/-0.047 10 11 61 2 WS2080 h TAWS2080 h UMWS2080 h 8.5 -0.025/-0.047 10 11 61 2 WS2085 h TAWS2085 h 9 -0.025/-0.047 10 11 61 2 WS2090 h TAWS2090 h MDTA 9.5 -0.025/-0.047 10 11 61 2 WS2095 h TAWS2095 h 10 -0.025/-0.047 10 13 63 2 WS2100 h TAWS2100 h UMWS2100 h 10.5 -0.032/-0.059 12 13 70 2 WS2105 h TAWS2105 h HF VH/UP 11 -0.032/-0.059 12 13 70 2 WS2110 h TAWS2110 h 11.5 -0.032/-0.059 12 13 70 2 WS2115 h TAWS2115 h 12 -0.032/-0.059 12 16 73 2 WS2120 h TAWS2120 h UMWS2120 h MEF 12.5 -0.032/-0.059 12 16 73 2 WS2125 h TAWS2125 h 13 -0.032/-0.059 12 16 73 2 WS2130 h TAWS2130 h 13.5 -0.032/-0.059 12 16 73 2 WS2135 h TAWS2135 h ALU 14 -0.032/-0.059 12 16 73 2 WS2140 h TAWS2140 h UMWS2140 h 15 -0.032/-0.059 12 16 73 2 WS2150 h TAWS2150 h 16 -0.032/-0.059 16 19 79 2 WS2160 h TAWS2160 h UMWS2160 h MEX 17 -0.032/-0.059 16 19 79 2 WS2170 h TAWS2170 h 18 -0.032/-0.059 16 19 79 2 WS2180 h TAWS2180 h UMWS2180 h 19 -0.040/-0.073 16 19 79 2 WS2190 h TAWS2190 h UH 20 -0.040/-0.073 20 22 88 2 WS2200 h TAWS2200 h UMWS2200 h 22 -0.040/-0.073 20 22 88 2 WS2220 h TAWS2220 h 24 -0.040/-0.073 25 26 102 2 WS2240 h HSSE/NCDO-MHISLSLPS 25 -0.040/-0.073 25 26 102 2 WS2250 h TAWS2250 h 26 -0.040/-0.073 25 26 102 2 WS2260 h 28 -0.040/-0.073 25 26 102 2 WS2280 h CARBIDE 30 -0.040/-0.073 25 26 102 2 WS2300 h BURRS h stock standard f non-standard stock m stock exhaustion 658
