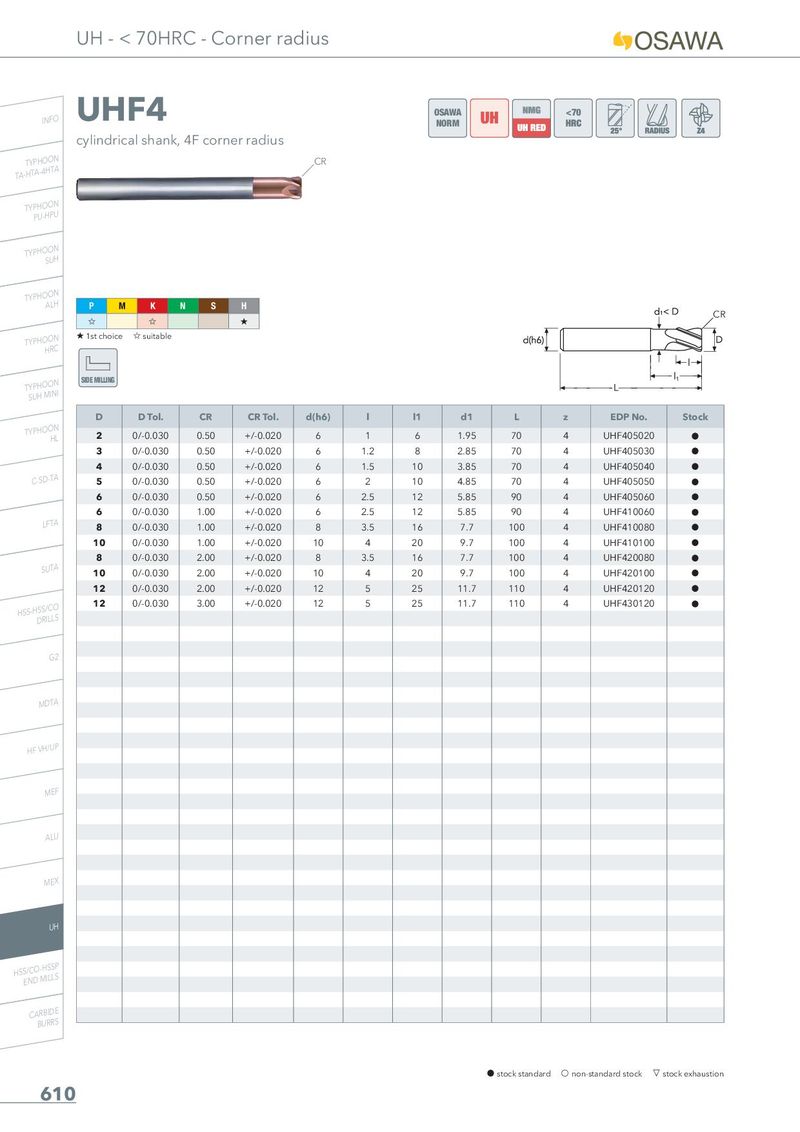

Общий каталог Osawa 2018 - страница 612

UH - < 70HRC - Corner radius INFO UHF4 OSAWA <70 NORM cylindrical shank, 4F corner radius TA-THYTPAH-4OHOTNA CR TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H , , + CR TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI SIDE MILLING D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock TYPHOOHNL 2 0/-0.030 0.50 +/-0.020 6 1 6 1.95 70 4 UHF405020 h 3 0/-0.030 0.50 +/-0.020 6 1.2 8 2.85 70 4 UHF405030 h 4 0/-0.030 0.50 +/-0.020 6 1.5 10 3.85 70 4 UHF405040 h C-SD-TA 5 0/-0.030 0.50 +/-0.020 6 2 10 4.85 70 4 UHF405050 h 6 0/-0.030 0.50 +/-0.020 6 2.5 12 5.85 90 4 UHF405060 h 6 0/-0.030 1.00 +/-0.020 6 2.5 12 5.85 90 4 UHF410060 h LFTA 8 0/-0.030 1.00 +/-0.020 8 3.5 16 7.7 100 4 UHF410080 h 10 0/-0.030 1.00 +/-0.020 10 4 20 9.7 100 4 UHF410100 h 8 0/-0.030 2.00 +/-0.020 8 3.5 16 7.7 100 4 UHF420080 h SUTA 10 0/-0.030 2.00 +/-0.020 10 4 20 9.7 100 4 UHF420100 h 12 0/-0.030 2.00 +/-0.020 12 5 25 11.7 110 4 UHF420120 h HSS-HDSSR/ILCLOS 12 0/-0.030 3.00 +/-0.020 12 5 25 11.7 110 4 UHF430120 h G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 610
