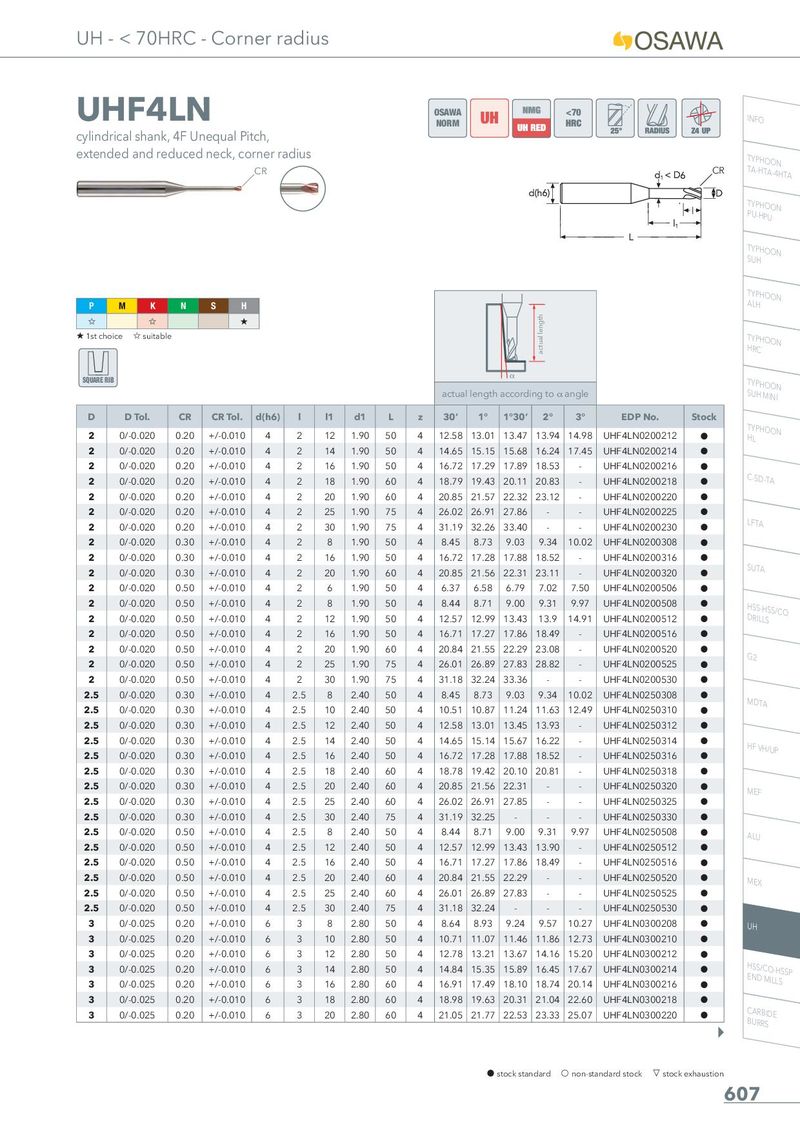

UH - < 70HRC - Corner radius UHF4LN OSAWA <70 INFO NORM cylindrical shank, 4F Unequal Pitch, extended and reduced neck, corner radius TTYAP-HHTOAO-4NHTA CR CR TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + actual length + 1st choice , suitable THYRPCHOON SQUARE RIB α TSUYPHHMOIONIN actual length according to _ angle D D Tol. CR CR Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock 2 0/-0.020 0.20 +/-0.010 4 2 12 1.90 50 4 12.58 13.01 13.47 13.94 14.98 UHF4LN0200212 h THYLPHOON 2 0/-0.020 0.20 +/-0.010 4 2 14 1.90 50 4 14.65 15.15 15.68 16.24 17.45 UHF4LN0200214 h 2 0/-0.020 0.20 +/-0.010 4 2 16 1.90 50 4 16.72 17.29 17.89 18.53 - UHF4LN0200216 h 2 0/-0.020 0.20 +/-0.010 4 2 18 1.90 60 4 18.79 19.43 20.11 20.83 - UHF4LN0200218 h C-SD-TA 2 0/-0.020 0.20 +/-0.010 4 2 20 1.90 60 4 20.85 21.57 22.32 23.12 - UHF4LN0200220 h 2 0/-0.020 0.20 +/-0.010 4 2 25 1.90 75 4 26.02 26.91 27.86 - - UHF4LN0200225 h 2 0/-0.020 0.20 +/-0.010 4 2 30 1.90 75 4 31.19 32.26 33.40 - - UHF4LN0200230 h LFTA 2 0/-0.020 0.30 +/-0.010 4 2 8 1.90 50 4 8.45 8.73 9.03 9.34 10.02 UHF4LN0200308 h 2 0/-0.020 0.30 +/-0.010 4 2 16 1.90 50 4 16.72 17.28 17.88 18.52 - UHF4LN0200316 h 2 0/-0.020 0.30 +/-0.010 4 2 20 1.90 60 4 20.85 21.56 22.31 23.11 - UHF4LN0200320 h SUTA 2 0/-0.020 0.50 +/-0.010 4 2 6 1.90 50 4 6.37 6.58 6.79 7.02 7.50 UHF4LN0200506 h 2 0/-0.020 0.50 +/-0.010 4 2 8 1.90 50 4 8.44 8.71 9.00 9.31 9.97 UHF4LN0200508 h HDSRSIL-LHSSS/CO 2 0/-0.020 0.50 +/-0.010 4 2 12 1.90 50 4 12.57 12.99 13.43 13.9 14.91 UHF4LN0200512 h 2 0/-0.020 0.50 +/-0.010 4 2 16 1.90 50 4 16.71 17.27 17.86 18.49 - UHF4LN0200516 h 2 0/-0.020 0.50 +/-0.010 4 2 20 1.90 60 4 20.84 21.55 22.29 23.08 - UHF4LN0200520 h G2 2 0/-0.020 0.50 +/-0.010 4 2 25 1.90 75 4 26.01 26.89 27.83 28.82 - UHF4LN0200525 h 2 0/-0.020 0.50 +/-0.010 4 2 30 1.90 75 4 31.18 32.24 33.36 - - UHF4LN0200530 h 2.5 0/-0.020 0.30 +/-0.010 4 2.5 8 2.40 50 4 8.45 8.73 9.03 9.34 10.02 UHF4LN0250308 h MDTA 2.5 0/-0.020 0.30 +/-0.010 4 2.5 10 2.40 50 4 10.51 10.87 11.24 11.63 12.49 UHF4LN0250310 h 2.5 0/-0.020 0.30 +/-0.010 4 2.5 12 2.40 50 4 12.58 13.01 13.45 13.93 - UHF4LN0250312 h 2.5 0/-0.020 0.30 +/-0.010 4 2.5 14 2.40 50 4 14.65 15.14 15.67 16.22 - UHF4LN0250314 h HF VH/UP 2.5 0/-0.020 0.30 +/-0.010 4 2.5 16 2.40 50 4 16.72 17.28 17.88 18.52 - UHF4LN0250316 h 2.5 0/-0.020 0.30 +/-0.010 4 2.5 18 2.40 60 4 18.78 19.42 20.10 20.81 - UHF4LN0250318 h 2.5 0/-0.020 0.30 +/-0.010 4 2.5 20 2.40 60 4 20.85 21.56 22.31 - - UHF4LN0250320 h MEF 2.5 0/-0.020 0.30 +/-0.010 4 2.5 25 2.40 60 4 26.02 26.91 27.85 - - UHF4LN0250325 h 2.5 0/-0.020 0.30 +/-0.010 4 2.5 30 2.40 75 4 31.19 32.25 - - - UHF4LN0250330 h 2.5 0/-0.020 0.50 +/-0.010 4 2.5 8 2.40 50 4 8.44 8.71 9.00 9.31 9.97 UHF4LN0250508 h ALU 2.5 0/-0.020 0.50 +/-0.010 4 2.5 12 2.40 50 4 12.57 12.99 13.43 13.90 - UHF4LN0250512 h 2.5 0/-0.020 0.50 +/-0.010 4 2.5 16 2.40 50 4 16.71 17.27 17.86 18.49 - UHF4LN0250516 h 2.5 0/-0.020 0.50 +/-0.010 4 2.5 20 2.40 60 4 20.84 21.55 22.29 - - UHF4LN0250520 h MEX 2.5 0/-0.020 0.50 +/-0.010 4 2.5 25 2.40 60 4 26.01 26.89 27.83 - - UHF4LN0250525 h 2.5 0/-0.020 0.50 +/-0.010 4 2.5 30 2.40 75 4 31.18 32.24 - - - UHF4LN0250530 h 3 0/-0.025 0.20 +/-0.010 6 3 8 2.80 50 4 8.64 8.93 9.24 9.57 10.27 UHF4LN0300208 h UH 3 0/-0.025 0.20 +/-0.010 6 3 10 2.80 50 4 10.71 11.07 11.46 11.86 12.73 UHF4LN0300210 h 3 0/-0.025 0.20 +/-0.010 6 3 12 2.80 50 4 12.78 13.21 13.67 14.16 15.20 UHF4LN0300212 h 3 0/-0.025 0.20 +/-0.010 6 3 14 2.80 50 4 14.84 15.35 15.89 16.45 17.67 UHF4LN0300214 h HENSSD/CMOIL-LHSSSP 3 0/-0.025 0.20 +/-0.010 6 3 16 2.80 60 4 16.91 17.49 18.10 18.74 20.14 UHF4LN0300216 h 3 0/-0.025 0.20 +/-0.010 6 3 18 2.80 60 4 18.98 19.63 20.31 21.04 22.60 UHF4LN0300218 h 3 0/-0.025 0.20 +/-0.010 6 3 20 2.80 60 4 21.05 21.77 22.53 23.33 25.07 UHF4LN0300220 h CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 607
