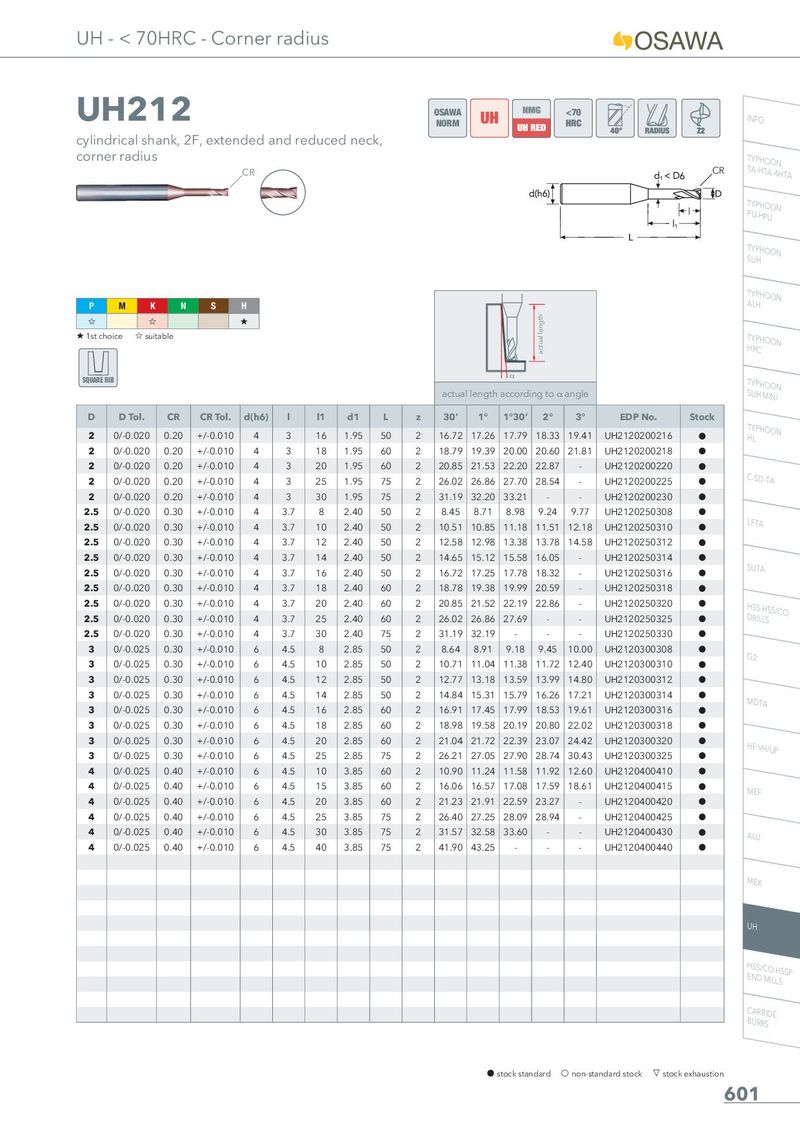

UH - < 70HRC - Corner radius UH212 OSAWA <70 INFO NORM cylindrical shank, 2F, extended and reduced neck, corner radius TTYAP-HHTOAO-4NHTA CR CR TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + actual length + 1st choice , suitable THYRPCHOON SQUARE RIB α TSUYPHHMOIONIN actual length according to _ angle D D Tol. CR CR Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock 2 0/-0.020 0.20 +/-0.010 4 3 16 1.95 50 2 16.72 17.26 17.79 18.33 19.41 UH2120200216 h THYLPHOON 2 0/-0.020 0.20 +/-0.010 4 3 18 1.95 60 2 18.79 19.39 20.00 20.60 21.81 UH2120200218 h 2 0/-0.020 0.20 +/-0.010 4 3 20 1.95 60 2 20.85 21.53 22.20 22.87 - UH2120200220 h 2 0/-0.020 0.20 +/-0.010 4 3 25 1.95 75 2 26.02 26.86 27.70 28.54 - UH2120200225 h C-SD-TA 2 0/-0.020 0.20 +/-0.010 4 3 30 1.95 75 2 31.19 32.20 33.21 - - UH2120200230 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 8 2.40 50 2 8.45 8.71 8.98 9.24 9.77 UH2120250308 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 10 2.40 50 2 10.51 10.85 11.18 11.51 12.18 UH2120250310 h LFTA 2.5 0/-0.020 0.30 +/-0.010 4 3.7 12 2.40 50 2 12.58 12.98 13.38 13.78 14.58 UH2120250312 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 14 2.40 50 2 14.65 15.12 15.58 16.05 - UH2120250314 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 16 2.40 50 2 16.72 17.25 17.78 18.32 - UH2120250316 h SUTA 2.5 0/-0.020 0.30 +/-0.010 4 3.7 18 2.40 60 2 18.78 19.38 19.99 20.59 - UH2120250318 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 20 2.40 60 2 20.85 21.52 22.19 22.86 - UH2120250320 h HDSRSIL-LHSSS/CO 2.5 0/-0.020 0.30 +/-0.010 4 3.7 25 2.40 60 2 26.02 26.86 27.69 - - UH2120250325 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 30 2.40 75 2 31.19 32.19 - - - UH2120250330 h 3 0/-0.025 0.30 +/-0.010 6 4.5 8 2.85 50 2 8.64 8.91 9.18 9.45 10.00 UH2120300308 h G2 3 0/-0.025 0.30 +/-0.010 6 4.5 10 2.85 50 2 10.71 11.04 11.38 11.72 12.40 UH2120300310 h 3 0/-0.025 0.30 +/-0.010 6 4.5 12 2.85 50 2 12.77 13.18 13.59 13.99 14.80 UH2120300312 h 3 0/-0.025 0.30 +/-0.010 6 4.5 14 2.85 50 2 14.84 15.31 15.79 16.26 17.21 UH2120300314 h MDTA 3 0/-0.025 0.30 +/-0.010 6 4.5 16 2.85 60 2 16.91 17.45 17.99 18.53 19.61 UH2120300316 h 3 0/-0.025 0.30 +/-0.010 6 4.5 18 2.85 60 2 18.98 19.58 20.19 20.80 22.02 UH2120300318 h 3 0/-0.025 0.30 +/-0.010 6 4.5 20 2.85 60 2 21.04 21.72 22.39 23.07 24.42 UH2120300320 h HF VH/UP 3 0/-0.025 0.30 +/-0.010 6 4.5 25 2.85 75 2 26.21 27.05 27.90 28.74 30.43 UH2120300325 h 4 0/-0.025 0.40 +/-0.010 6 4.5 10 3.85 60 2 10.90 11.24 11.58 11.92 12.60 UH2120400410 h 4 0/-0.025 0.40 +/-0.010 6 4.5 15 3.85 60 2 16.06 16.57 17.08 17.59 18.61 UH2120400415 h MEF 4 0/-0.025 0.40 +/-0.010 6 4.5 20 3.85 60 2 21.23 21.91 22.59 23.27 - UH2120400420 h 4 0/-0.025 0.40 +/-0.010 6 4.5 25 3.85 75 2 26.40 27.25 28.09 28.94 - UH2120400425 h 4 0/-0.025 0.40 +/-0.010 6 4.5 30 3.85 75 2 31.57 32.58 33.60 - - UH2120400430 h ALU 4 0/-0.025 0.40 +/-0.010 6 4.5 40 3.85 75 2 41.90 43.25 - - - UH2120400440 h MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 601
