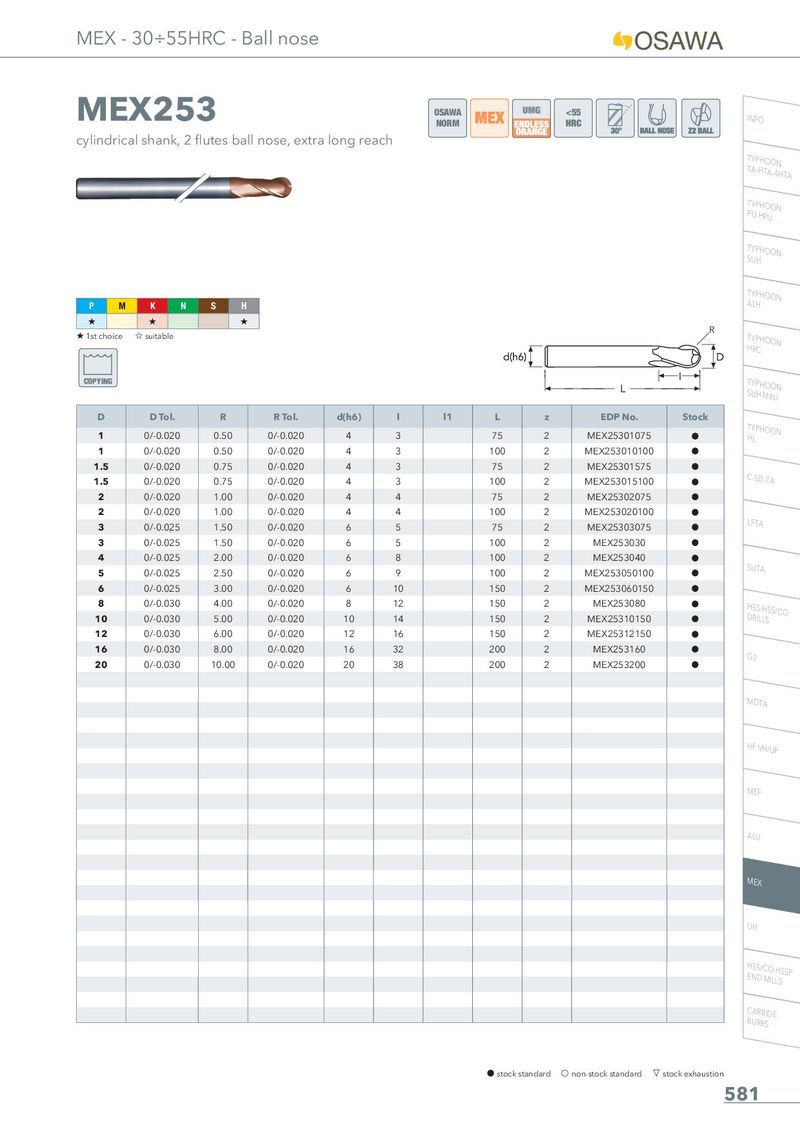

MEX - 30÷55HRC - Ball nose MEX253 OSAWA <55 INFO NORM cylindrical shank, 2 flutes ball nose, extra long reach TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + + 1st choice , suitable R THYRPCHOON COPYING TSUYPHHMOIONIN D D Tol. R R Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.020 0.50 0/-0.020 4 3 75 2 MEX25301075 h THYLPHOON 1 0/-0.020 0.50 0/-0.020 4 3 100 2 MEX253010100 h 1.5 0/-0.020 0.75 0/-0.020 4 3 75 2 MEX25301575 h 1.5 0/-0.020 0.75 0/-0.020 4 3 100 2 MEX253015100 h C-SD-TA 2 0/-0.020 1.00 0/-0.020 4 4 75 2 MEX25302075 h 2 0/-0.020 1.00 0/-0.020 4 4 100 2 MEX253020100 h 3 0/-0.025 1.50 0/-0.020 6 5 75 2 MEX25303075 h LFTA 3 0/-0.025 1.50 0/-0.020 6 5 100 2 MEX253030 h 4 0/-0.025 2.00 0/-0.020 6 8 100 2 MEX253040 h 5 0/-0.025 2.50 0/-0.020 6 9 100 2 MEX253050100 h SUTA 6 0/-0.025 3.00 0/-0.020 6 10 150 2 MEX253060150 h 8 0/-0.030 4.00 0/-0.020 8 12 150 2 MEX253080 h HDSRSIL-LHSSS/CO 10 0/-0.030 5.00 0/-0.020 10 14 150 2 MEX25310150 h 12 0/-0.030 6.00 0/-0.020 12 16 150 2 MEX25312150 h 16 0/-0.030 8.00 0/-0.020 16 32 200 2 MEX253160 h G2 20 0/-0.030 10.00 0/-0.020 20 38 200 2 MEX253200 h MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 581
