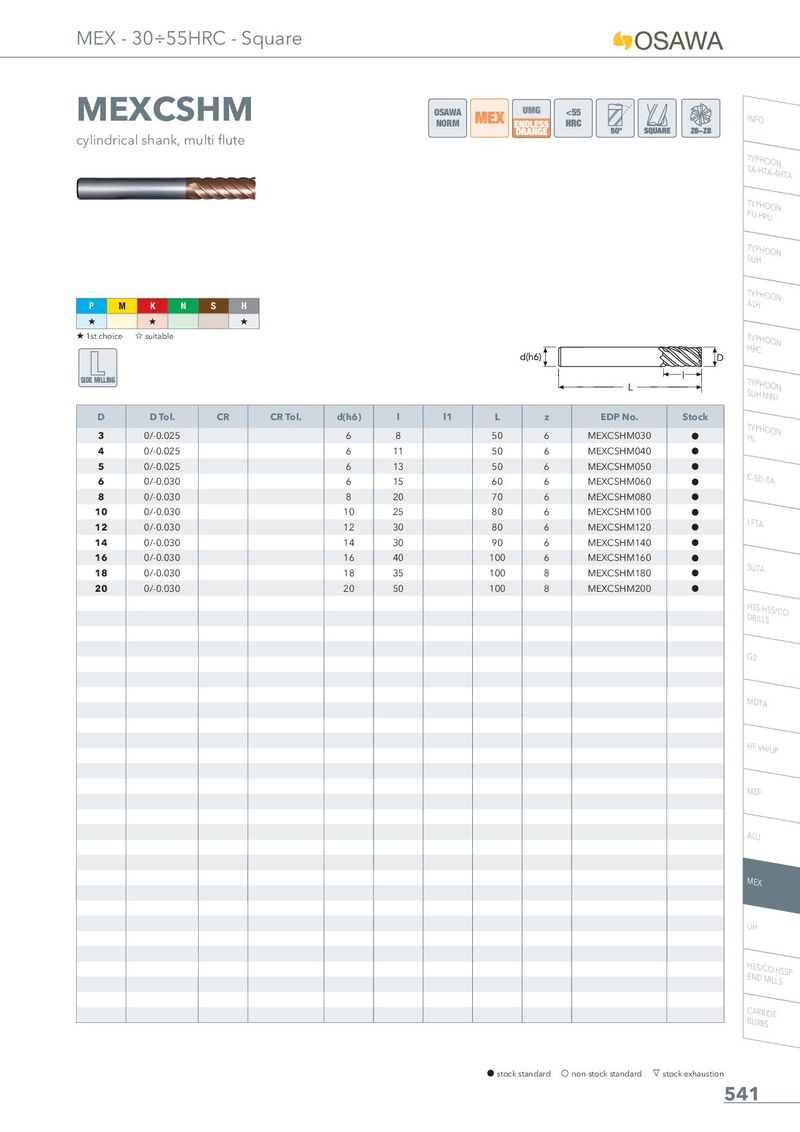

MEXCSHM
cylindrical shank, multi flute
OSAWA <55 NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | ||||||||
| � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 3 | 0/-0.025 | 6 | 8 | 50 | 6 | MEXCSHM030 | h | |||
| 4 | 0/-0.025 | 6 | 11 | 50 | 6 | MEXCSHM040 | h | |||
| 5 | 0/-0.025 | 6 | 13 | 50 | 6 | MEXCSHM050 | h | |||
| 6 | 0/-0.030 | 6 | 15 | 60 | 6 | MEXCSHM060 | h | |||
| 8 | 0/-0.030 | 8 | 20 | 70 | 6 | MEXCSHM080 | h | |||
| 10 | 0/-0.030 | 10 | 25 | 80 | 6 | MEXCSHM100 | h | |||
| 12 | 0/-0.030 | 12 | 30 | 80 | 6 | MEXCSHM120 | h | |||
| 14 | 0/-0.030 | 14 | 30 | 90 | 6 | MEXCSHM140 | h | |||
| 16 | 0/-0.030 | 16 | 40 | 100 | 6 | MEXCSHM160 | h | |||
| 18 | 0/-0.030 | 18 | 35 | 100 | 8 | MEXCSHM180 | h | |||
| 20 | 0/-0.030 | 20 | 50 | 100 | 8 | MEXCSHM200 | h |
