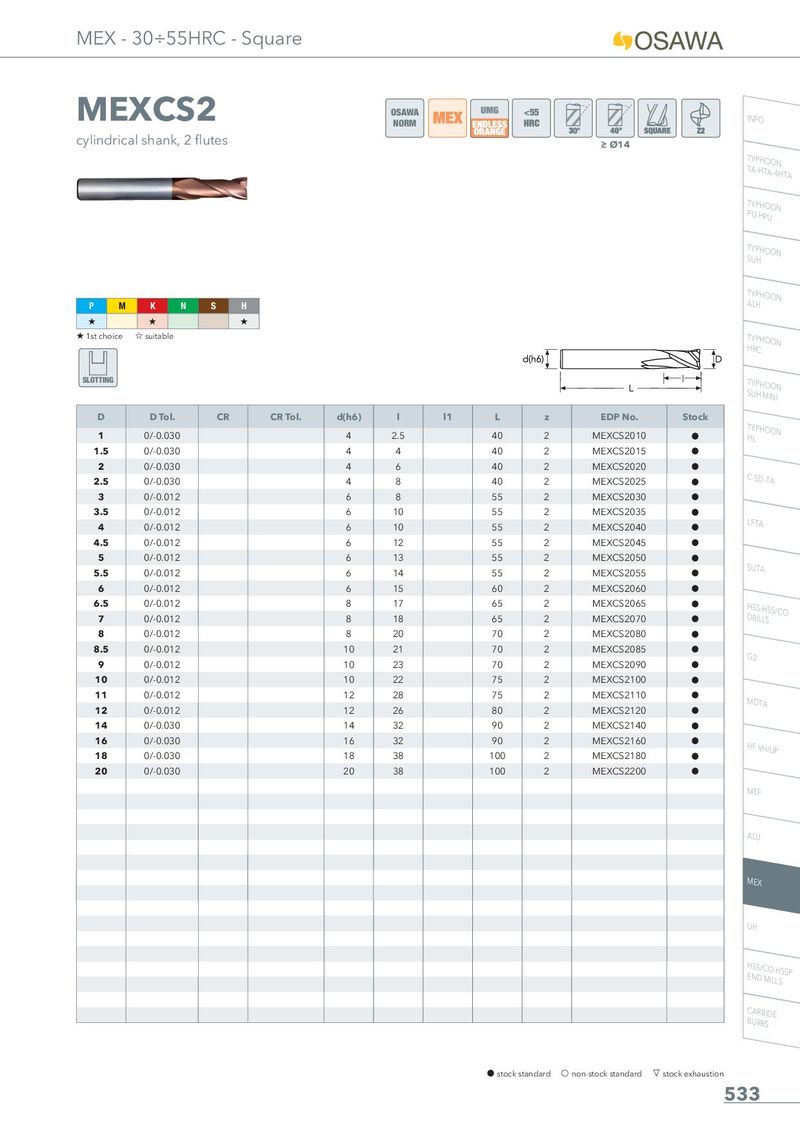

Общий каталог Osawa 2018 - страница 535

MEX - 30÷55HRC - Square MEXCS2 OSAWA <55 INFO NORM cylindrical shank, 2 flutes ≥ Ø14 TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + + 1st choice , suitable THYRPCHOON SLOTTING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.030 4 2.5 40 2 MEXCS2010 h THYLPHOON 1.5 0/-0.030 4 4 40 2 MEXCS2015 h 2 0/-0.030 4 6 40 2 MEXCS2020 h 2.5 0/-0.030 4 8 40 2 MEXCS2025 h C-SD-TA 3 0/-0.012 6 8 55 2 MEXCS2030 h 3.5 0/-0.012 6 10 55 2 MEXCS2035 h 4 0/-0.012 6 10 55 2 MEXCS2040 h LFTA 4.5 0/-0.012 6 12 55 2 MEXCS2045 h 5 0/-0.012 6 13 55 2 MEXCS2050 h 5.5 0/-0.012 6 14 55 2 MEXCS2055 h SUTA 6 0/-0.012 6 15 60 2 MEXCS2060 h 6.5 0/-0.012 8 17 65 2 MEXCS2065 h HDSRSIL-LHSSS/CO 7 0/-0.012 8 18 65 2 MEXCS2070 h 8 0/-0.012 8 20 70 2 MEXCS2080 h 8.5 0/-0.012 10 21 70 2 MEXCS2085 h G2 9 0/-0.012 10 23 70 2 MEXCS2090 h 10 0/-0.012 10 22 75 2 MEXCS2100 h 11 0/-0.012 12 28 75 2 MEXCS2110 h MDTA 12 0/-0.012 12 26 80 2 MEXCS2120 h 14 0/-0.030 14 32 90 2 MEXCS2140 h 16 0/-0.030 16 32 90 2 MEXCS2160 h HF VH/UP 18 0/-0.030 18 38 100 2 MEXCS2180 h 20 0/-0.030 20 38 100 2 MEXCS2200 h MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 533
