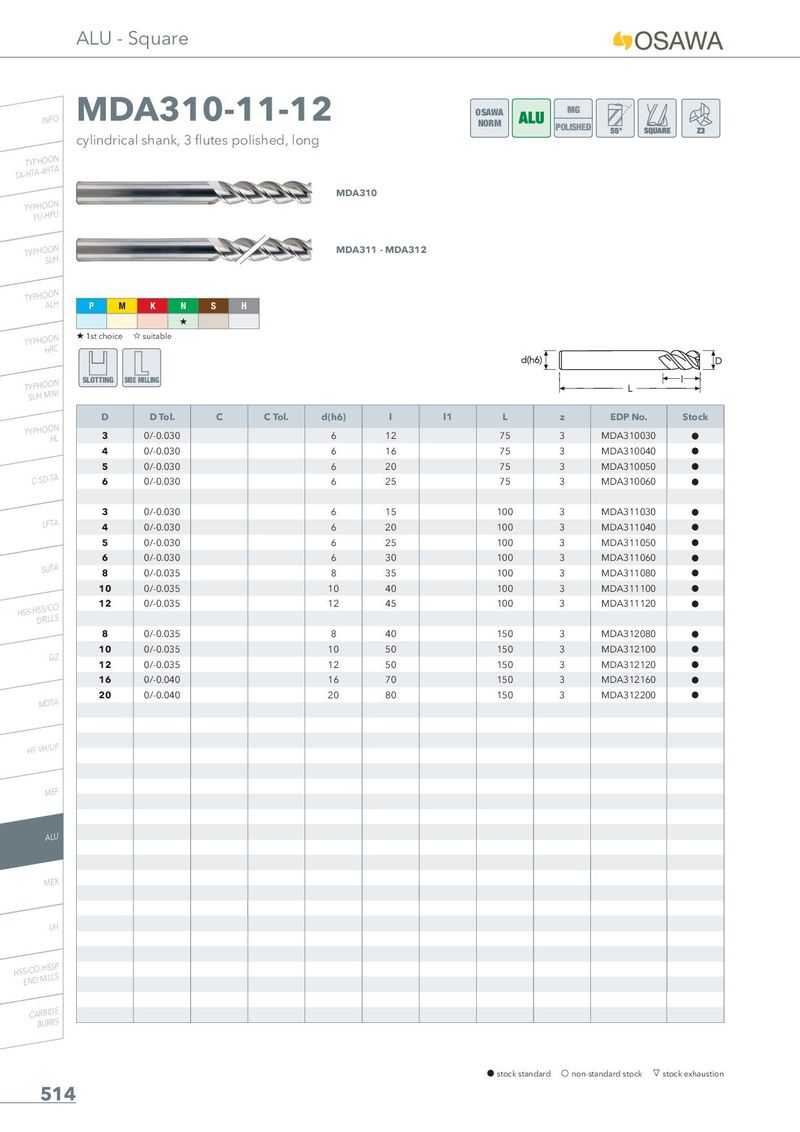

MDA310-11-12
OSAWA NORM POLISHED
cylindrical shank, 3 flutes polished, long
MDA310
MDA311 - MDA312
| P M �1st choice | K N � �suitable | S | H | ||||||
| SLOTTING S | IDE MILLING | ||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 L | z | EDP No. | Stock |
| 3 | 0/-0.030 | 6 | 12 | 75 | 3 | MDA310030 | h | ||
| 4 | 0/-0.030 | 6 | 16 | 75 | 3 | MDA310040 | h | ||
| 5 | 0/-0.030 | 6 | 20 | 75 | 3 | MDA310050 | h | ||
| 6 | 0/-0.030 | 6 | 25 | 75 | 3 | MDA310060 | h | ||
| 3 | 0/-0.030 | 6 | 15 | 100 | 3 | MDA311030 | h | ||
| 4 | 0/-0.030 | 6 | 20 | 100 | 3 | MDA311040 | h | ||
| 5 | 0/-0.030 | 6 | 25 | 100 | 3 | MDA311050 | h | ||
| 6 | 0/-0.030 | 6 | 30 | 100 | 3 | MDA311060 | h | ||
| 8 | 0/-0.035 | 8 | 35 | 100 | 3 | MDA311080 | h | ||
| 10 | 0/-0.035 | 10 | 40 | 100 | 3 | MDA311100 | h | ||
| 12 | 0/-0.035 | 12 | 45 | 100 | 3 | MDA311120 | h | ||
| 8 | 0/-0.035 | 8 | 40 | 150 | 3 | MDA312080 | h | ||
| 10 | 0/-0.035 | 10 | 50 | 150 | 3 | MDA312100 | h | ||
| 12 | 0/-0.035 | 12 | 50 | 150 | 3 | MDA312120 | h | ||
| 16 | 0/-0.040 | 16 | 70 | 150 | 3 | MDA312160 | h | ||
| 20 | 0/-0.040 | 20 | 80 | 150 | 3 | MDA312200 | h |
