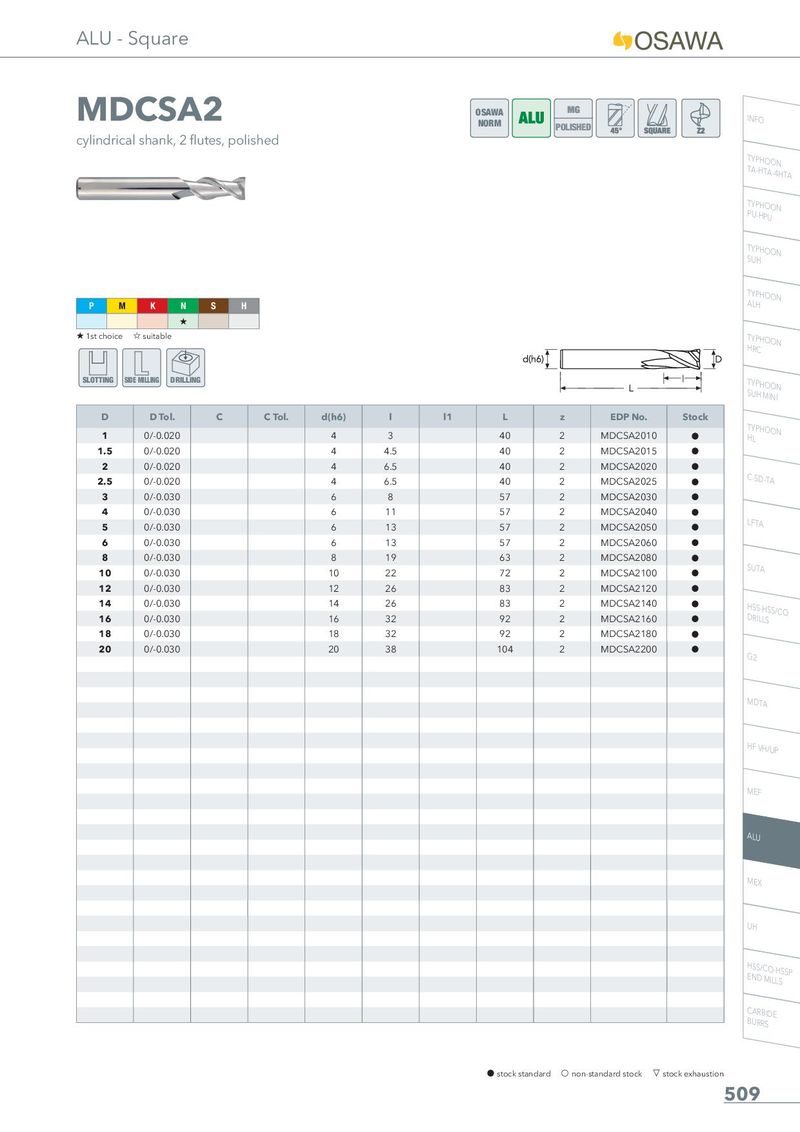

MDCSA2

cylindrical shank, 2 flutes, polished

OSAWA NORM

POLISHED

INFO

TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON

P M �1st choice	K N � �suitable	S	H
SLOTTING S	IDE MILLING DRILLING
D	D Tol.	C	C Tol.	d(h6)	l	l1 L	z	EDP No.	Stock
1	0/-0.020			4	3	40	2	MDCSA2010	h
1.5	0/-0.020			4	4.5	40	2	MDCSA2015	h
2	0/-0.020			4	6.5	40	2	MDCSA2020	h
2.5	0/-0.020			4	6.5	40	2	MDCSA2025	h
3	0/-0.030			6	8	57	2	MDCSA2030	h
4	0/-0.030			6	11	57	2	MDCSA2040	h
5	0/-0.030			6	13	57	2	MDCSA2050	h
6	0/-0.030			6	13	57	2	MDCSA2060	h
8	0/-0.030			8	19	63	2	MDCSA2080	h
10	0/-0.030			10	22	72	2	MDCSA2100	h
12	0/-0.030			12	26	83	2	MDCSA2120	h
14	0/-0.030			14	26	83	2	MDCSA2140	h
16	0/-0.030			16	32	92	2	MDCSA2160	h
18	0/-0.030			18	32	92	2	MDCSA2180	h
20	0/-0.030			20	38	104	2	MDCSA2200	h
