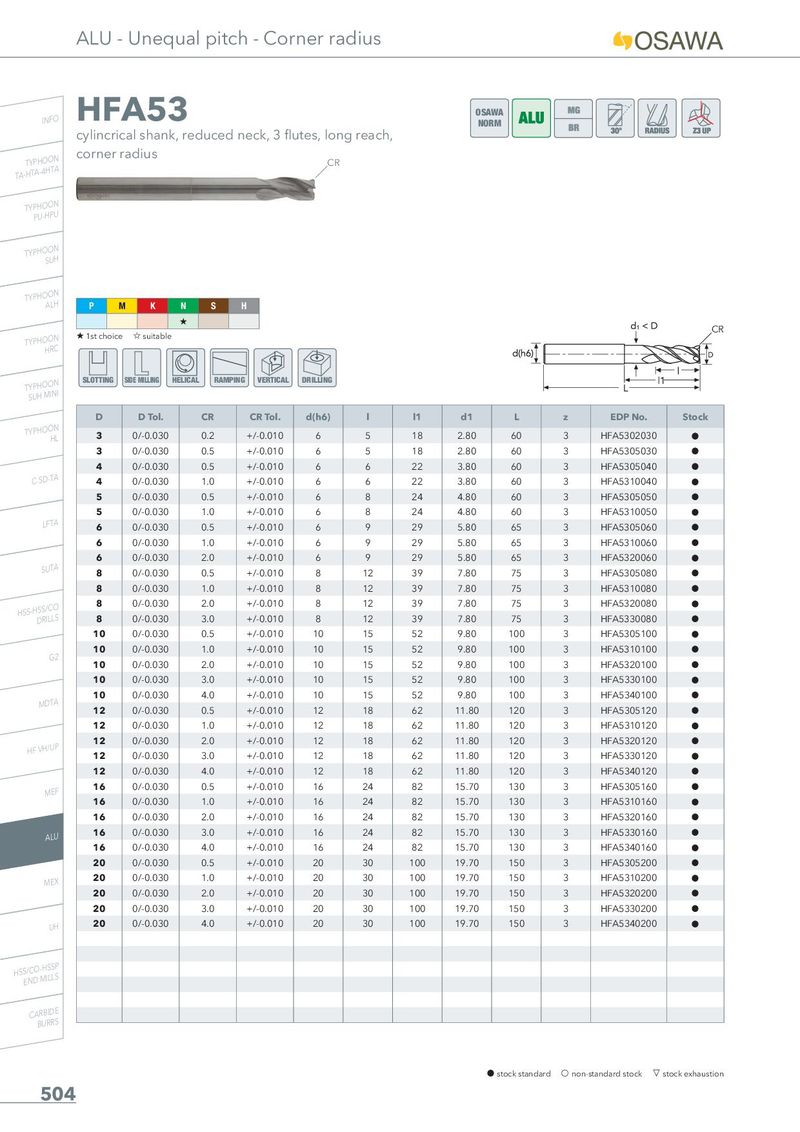

ALU - Unequal pitch - Corner radius INFO HFA53 OSAWA NORM cylincrical shank, reduced neck, 3 flutes, long reach, TA-THYTPAH-4OHOTNA corner radius CR TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H + + 1st choice , suitable CR TYPHOHORNC TSYUPHHOMOINNI SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL DRILLING D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock TYPHOOHNL 3 0/-0.030 0.2 +/-0.010 6 5 18 2.80 60 3 HFA5302030 h 3 0/-0.030 0.5 +/-0.010 6 5 18 2.80 60 3 HFA5305030 h 4 0/-0.030 0.5 +/-0.010 6 6 22 3.80 60 3 HFA5305040 h C-SD-TA 4 0/-0.030 1.0 +/-0.010 6 6 22 3.80 60 3 HFA5310040 h 5 0/-0.030 0.5 +/-0.010 6 8 24 4.80 60 3 HFA5305050 h 5 0/-0.030 1.0 +/-0.010 6 8 24 4.80 60 3 HFA5310050 h LFTA 6 0/-0.030 0.5 +/-0.010 6 9 29 5.80 65 3 HFA5305060 h 6 0/-0.030 1.0 +/-0.010 6 9 29 5.80 65 3 HFA5310060 h 6 0/-0.030 2.0 +/-0.010 6 9 29 5.80 65 3 HFA5320060 h SUTA 8 0/-0.030 0.5 +/-0.010 8 12 39 7.80 75 3 HFA5305080 h 8 0/-0.030 1.0 +/-0.010 8 12 39 7.80 75 3 HFA5310080 h HSS-HDSSR/ILCLOS 8 0/-0.030 2.0 +/-0.010 8 12 39 7.80 75 3 HFA5320080 h 8 0/-0.030 3.0 +/-0.010 8 12 39 7.80 75 3 HFA5330080 h 10 0/-0.030 0.5 +/-0.010 10 15 52 9.80 100 3 HFA5305100 h G2 10 0/-0.030 1.0 +/-0.010 10 15 52 9.80 100 3 HFA5310100 h 10 0/-0.030 2.0 +/-0.010 10 15 52 9.80 100 3 HFA5320100 h 10 0/-0.030 3.0 +/-0.010 10 15 52 9.80 100 3 HFA5330100 h MDTA 10 0/-0.030 4.0 +/-0.010 10 15 52 9.80 100 3 HFA5340100 h 12 0/-0.030 0.5 +/-0.010 12 18 62 11.80 120 3 HFA5305120 h 12 0/-0.030 1.0 +/-0.010 12 18 62 11.80 120 3 HFA5310120 h HF VH/UP 12 0/-0.030 2.0 +/-0.010 12 18 62 11.80 120 3 HFA5320120 h 12 0/-0.030 3.0 +/-0.010 12 18 62 11.80 120 3 HFA5330120 h 12 0/-0.030 4.0 +/-0.010 12 18 62 11.80 120 3 HFA5340120 h MEF 16 0/-0.030 0.5 +/-0.010 16 24 82 15.70 130 3 HFA5305160 h 16 0/-0.030 1.0 +/-0.010 16 24 82 15.70 130 3 HFA5310160 h 16 0/-0.030 2.0 +/-0.010 16 24 82 15.70 130 3 HFA5320160 h ALU 16 0/-0.030 3.0 +/-0.010 16 24 82 15.70 130 3 HFA5330160 h 16 0/-0.030 4.0 +/-0.010 16 24 82 15.70 130 3 HFA5340160 h 20 0/-0.030 0.5 +/-0.010 20 30 100 19.70 150 3 HFA5305200 h MEX 20 0/-0.030 1.0 +/-0.010 20 30 100 19.70 150 3 HFA5310200 h 20 0/-0.030 2.0 +/-0.010 20 30 100 19.70 150 3 HFA5320200 h 20 0/-0.030 3.0 +/-0.010 20 30 100 19.70 150 3 HFA5330200 h UH 20 0/-0.030 4.0 +/-0.010 20 30 100 19.70 150 3 HFA5340200 h HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 504
