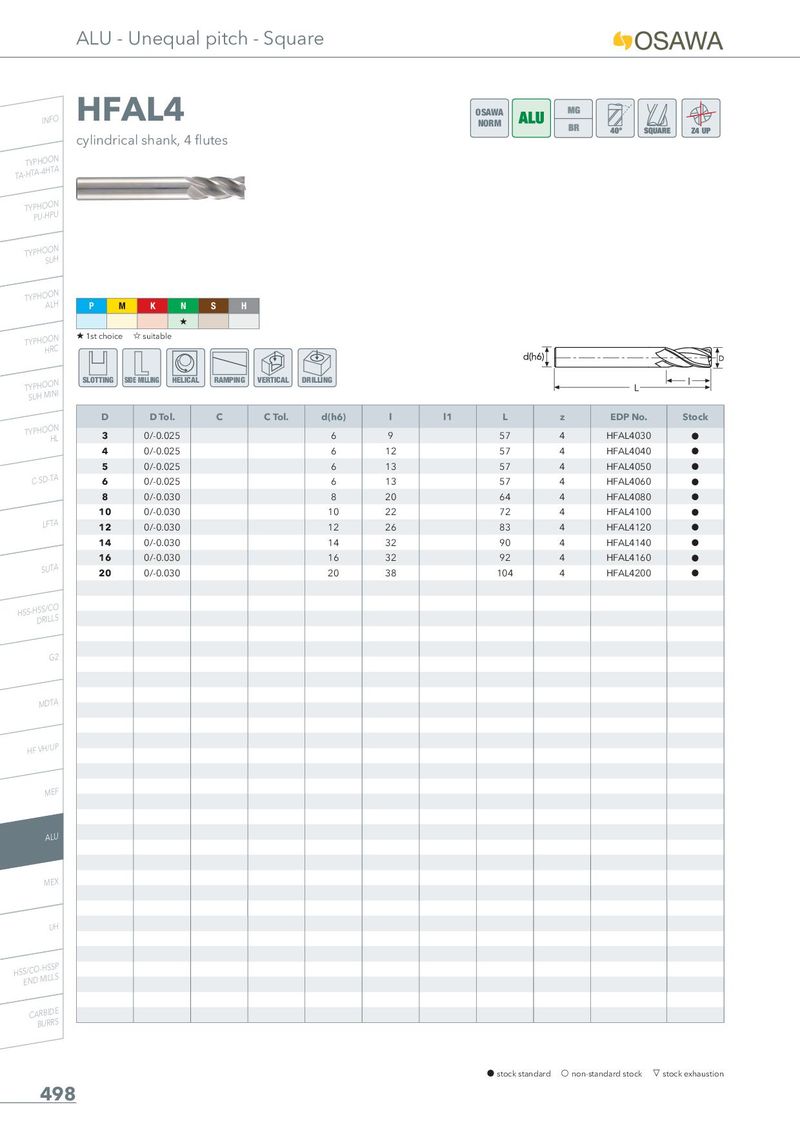

HFAL4
OSAWA NORM
cylindrical shank, 4 flutes
| P M �1st choice | K N � �suitable | S H | |||||||
| SLOTTING S | IDE MILLING HELICAL | RAMPING | VERTICAL | DRILLING | |||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 L | z | EDP No. | Stock |
| 3 | 0/-0.025 | 6 | 9 | 57 | 4 | HFAL4030 | h | ||
| 4 | 0/-0.025 | 6 | 12 | 57 | 4 | HFAL4040 | h | ||
| 5 | 0/-0.025 | 6 | 13 | 57 | 4 | HFAL4050 | h | ||
| 6 | 0/-0.025 | 6 | 13 | 57 | 4 | HFAL4060 | h | ||
| 8 | 0/-0.030 | 8 | 20 | 64 | 4 | HFAL4080 | h | ||
| 10 | 0/-0.030 | 10 | 22 | 72 | 4 | HFAL4100 | h | ||
| 12 | 0/-0.030 | 12 | 26 | 83 | 4 | HFAL4120 | h | ||
| 14 | 0/-0.030 | 14 | 32 | 90 | 4 | HFAL4140 | h | ||
| 16 | 0/-0.030 | 16 | 32 | 92 | 4 | HFAL4160 | h | ||
| 20 | 0/-0.030 | 20 | 38 | 104 | 4 | HFAL4200 | h |
