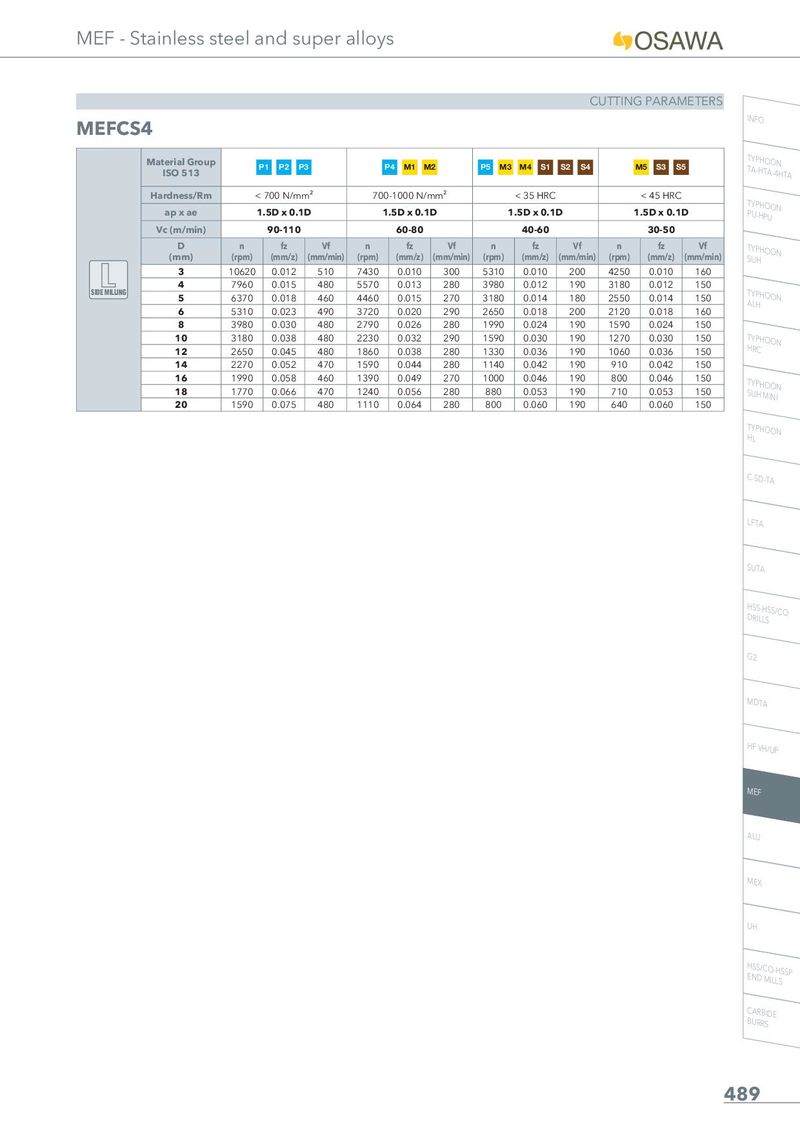

CUTTING PARAMETERS

MEFCS4 INFO

	Material Group ISO 513	P	1 P2 P3		P	4 M1 M2		P5 M3	M4 S1	S2 S4		M5 S3 S	5
	Hardness/Rm		700 N/mm	²	700	-1000 N/m	m²		< 35 HRC			< 45 HRC
	ap x ae	1	.5D x 0.1D		1	.5D x 0.1D		1	.5D x 0.1	D	1	.5D x 0.1	D
	Vc (m/min)		90-110			60-80			40-60			30-50
	D (mm)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	3	10620	0.012	510	7430	0.010	300	5310	0.010	200	4250	0.010	160
	4	7960	0.015	480	5570	0.013	280	3980	0.012	190	3180	0.012	150
SIDE MILLING	5	6370	0.018	460	4460	0.015	270	3180	0.014	180	2550	0.014	150
	6	5310	0.023	490	3720	0.020	290	2650	0.018	200	2120	0.018	160
	8	3980	0.030	480	2790	0.026	280	1990	0.024	190	1590	0.024	150
	10	3180	0.038	480	2230	0.032	290	1590	0.030	190	1270	0.030	150
	12	2650	0.045	480	1860	0.038	280	1330	0.036	190	1060	0.036	150
	14	2270	0.052	470	1590	0.044	280	1140	0.042	190	910	0.042	150
	16	1990	0.058	460	1390	0.049	270	1000	0.046	190	800	0.046	150
	18	1770	0.066	470	1240	0.056	280	880	0.053	190	710	0.053	150
	20	1590	0.075	480	1110	0.064	280	800	0.060	190	640	0.060	150
