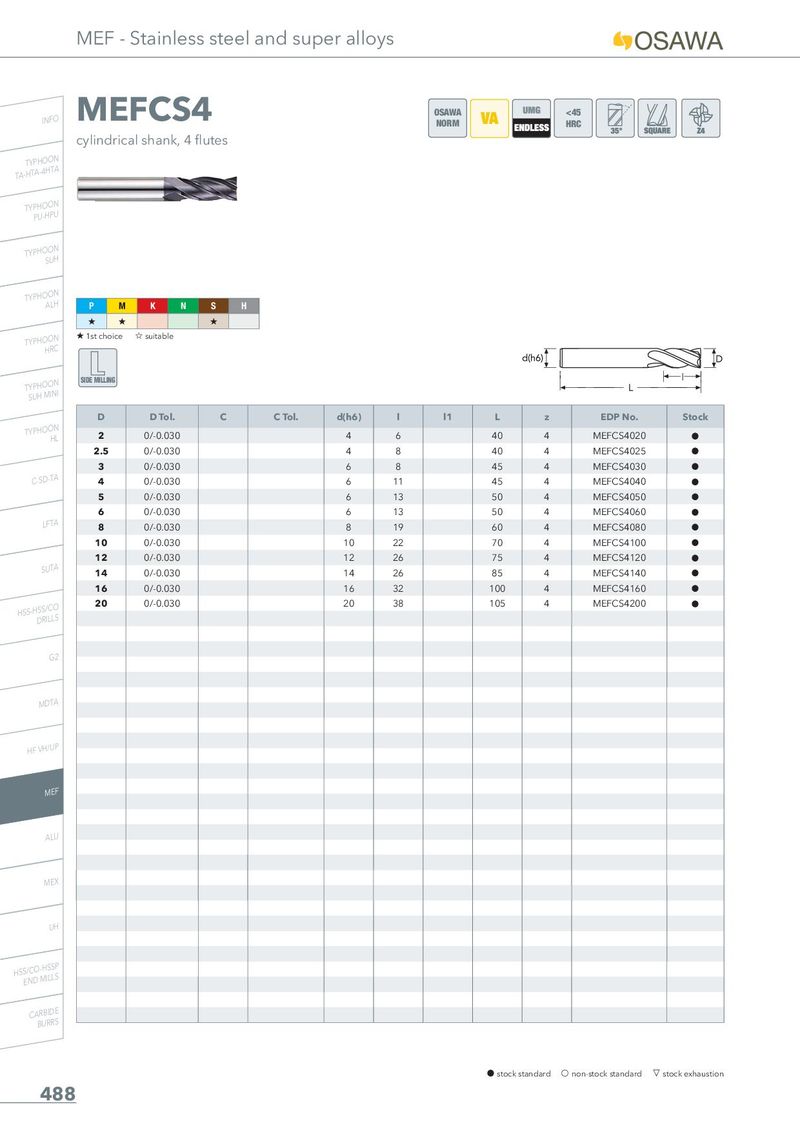

MEFCS4
OSAWA <45 NORM HRC
cylindrical shank, 4 flutes
| P M | K N | S H | ||||||||
| � � | � | |||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 2 | 0/-0.030 | 4 | 6 | 40 | 4 | MEFCS4020 | h | |||
| 2.5 | 0/-0.030 | 4 | 8 | 40 | 4 | MEFCS4025 | h | |||
| 3 | 0/-0.030 | 6 | 8 | 45 | 4 | MEFCS4030 | h | |||
| 4 | 0/-0.030 | 6 | 11 | 45 | 4 | MEFCS4040 | h | |||
| 5 | 0/-0.030 | 6 | 13 | 50 | 4 | MEFCS4050 | h | |||
| 6 | 0/-0.030 | 6 | 13 | 50 | 4 | MEFCS4060 | h | |||
| 8 | 0/-0.030 | 8 | 19 | 60 | 4 | MEFCS4080 | h | |||
| 10 | 0/-0.030 | 10 | 22 | 70 | 4 | MEFCS4100 | h | |||
| 12 | 0/-0.030 | 12 | 26 | 75 | 4 | MEFCS4120 | h | |||
| 14 | 0/-0.030 | 14 | 26 | 85 | 4 | MEFCS4140 | h | |||
| 16 | 0/-0.030 | 16 | 32 | 100 | 4 | MEFCS4160 | h | |||
| 20 | 0/-0.030 | 20 | 38 | 105 | 4 | MEFCS4200 | h |
