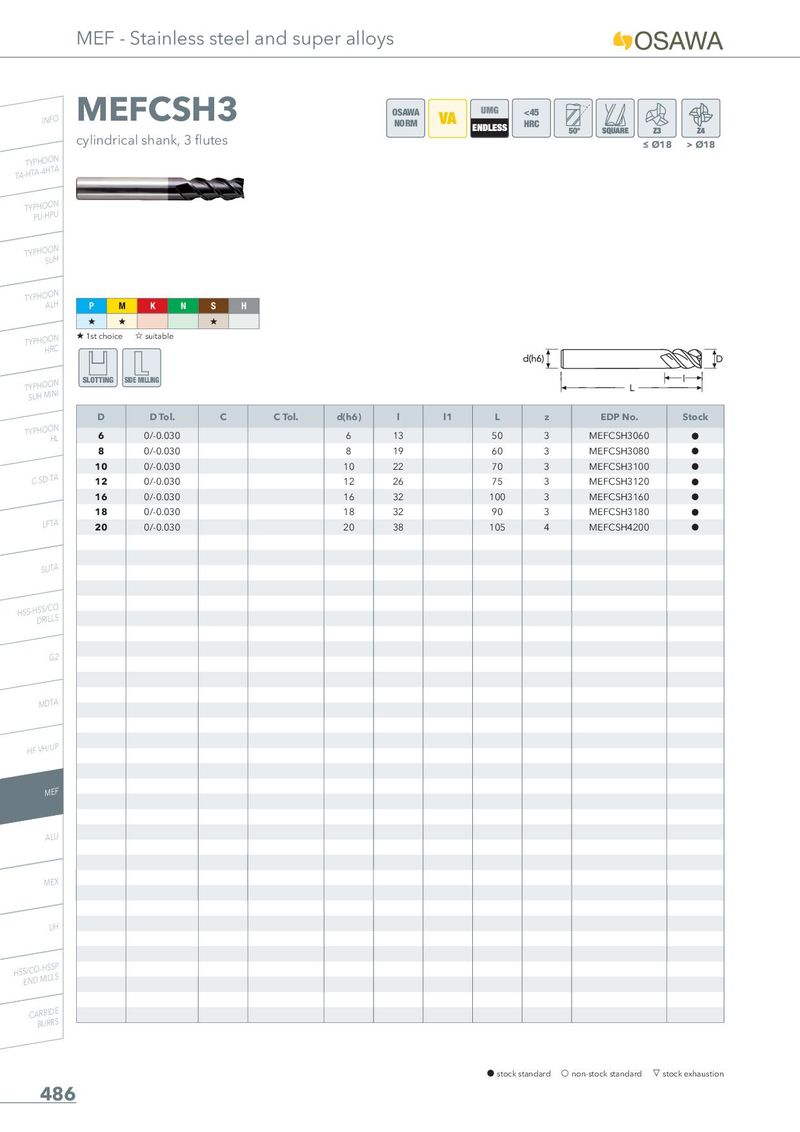

MEFCSH3
cylindrical shank, 3 flutes
P M K N S H
+ 1st choice , suitable
SLOTTING SIDE MILLING
OSAWA <45 NORM HRC ≤ Ø18 > Ø18
| D | D Tol. | C | C Tol. | d(h6) | l l1 L | z | EDP No. | Stock |
| 6 | 0/-0.030 | 6 | 13 50 | 3 | MEFCSH3060 | h | ||
| 8 | 0/-0.030 | 8 | 19 60 | 3 | MEFCSH3080 | h | ||
| 10 | 0/-0.030 | 10 | 22 70 | 3 | MEFCSH3100 | h | ||
| 12 | 0/-0.030 | 12 | 26 75 | 3 | MEFCSH3120 | h | ||
| 16 | 0/-0.030 | 16 | 32 100 | 3 | MEFCSH3160 | h | ||
| 18 | 0/-0.030 | 18 | 32 90 | 3 | MEFCSH3180 | h | ||
| 20 | 0/-0.030 | 20 | 38 105 | 4 | MEFCSH4200 | h |
