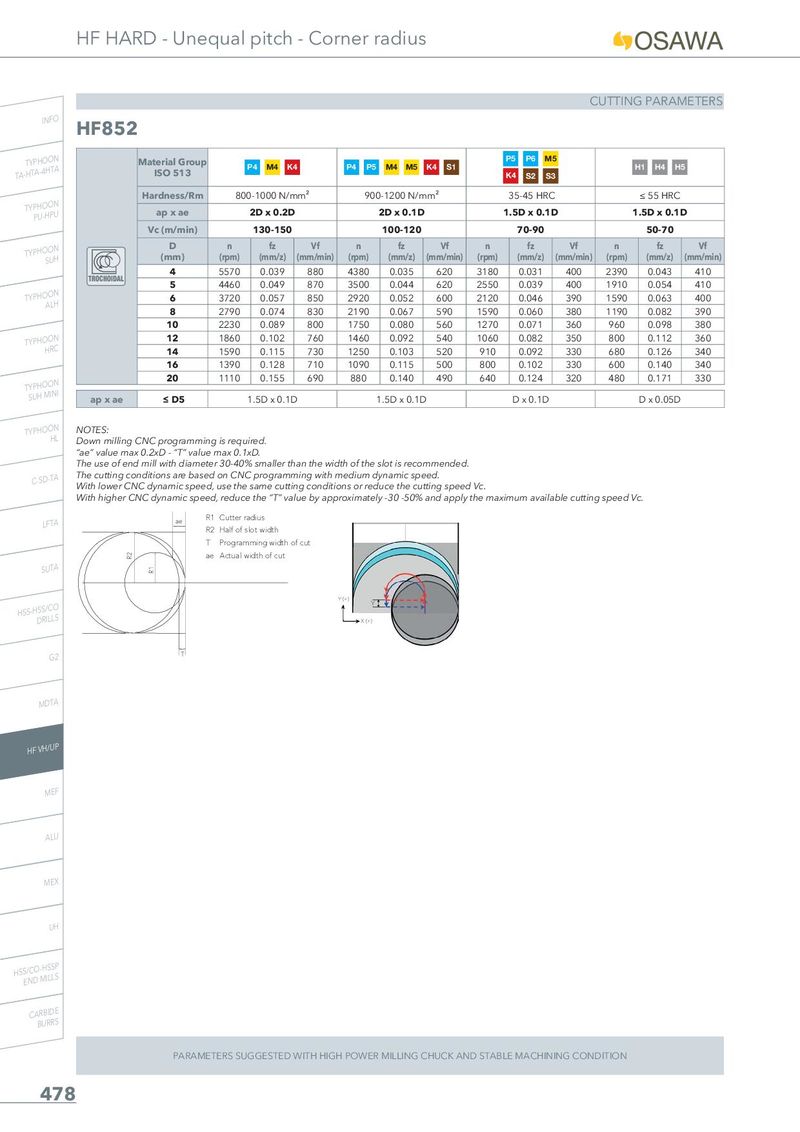

CUTTING PARAMETERS
INFO HF852
| Material Group ISO 513 | P4 M4 K4 | P4 P5 | M4 M5 | K4 S1 | P5 P6 M5 K4 S2 S3 | H1 H4 H5 | |||||||
| Hardness/Rm | 80 | 0-1000 N/m | m² | 900 | -1200 N/m | m² | 35-45 HRC | ≤ 55 HRC | |||||
| ap x ae | 2D x 0.2D | 2D x 0.1D | 1.5D x 0.1D | 1.5D x 0.1 | D | ||||||||
| Vc (m/min) | 130-150 | 100-120 | 70-90 | 50-70 | |||||||||
| D (mm) | n (rpm) | fz (mm/z) | Vf (mm/min) | n (rpm) | fz (mm/z) | Vf (mm/min) | n (rpm) | fz (mm/z) ( | Vf mm/min) | n (rpm) | fz (mm/z) | Vf (mm/min) | |
| 4 | 5570 | 0.039 | 880 | 4380 | 0.035 | 620 | 3180 | 0.031 | 400 | 2390 | 0.043 | 410 | |
| TROCHOIDAL | 5 | 4460 | 0.049 | 870 | 3500 | 0.044 | 620 | 2550 | 0.039 | 400 | 1910 | 0.054 | 410 |
| 6 | 3720 | 0.057 | 850 | 2920 | 0.052 | 600 | 2120 | 0.046 | 390 | 1590 | 0.063 | 400 | |
| 8 | 2790 | 0.074 | 830 | 2190 | 0.067 | 590 | 1590 | 0.060 | 380 | 1190 | 0.082 | 390 | |
| 10 | 2230 | 0.089 | 800 | 1750 | 0.080 | 560 | 1270 | 0.071 | 360 | 960 | 0.098 | 380 | |
| 12 | 1860 | 0.102 | 760 | 1460 | 0.092 | 540 | 1060 | 0.082 | 350 | 800 | 0.112 | 360 | |
| 14 | 1590 | 0.115 | 730 | 1250 | 0.103 | 520 | 910 | 0.092 | 330 | 680 | 0.126 | 340 | |
| 16 | 1390 | 0.128 | 710 | 1090 | 0.115 | 500 | 800 | 0.102 | 330 | 600 | 0.140 | 340 | |
| 20 | 1110 | 0.155 | 690 | 880 | 0.140 | 490 | 640 | 0.124 | 320 | 480 | 0.171 | 330 | |
| ap x ae | ≤ D5 | 1.5D x 0.1D | 1 | .5D x 0.1D | D x 0.1D | D x 0.05D |
PU-HPU
SUH
ALH
TYPHOON
TYPHOON
TYPHOON NOTES: HL Down milling CNC programming is required. “ae” value max 0.2xD - “T” value max 0.1xD. The use of end mill with diameter 30-40% smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. C-SD-TA With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the “T” value by approximately -30 -50% and apply the maximum available cutting speed Vc. R1 Cutter radius LFTA ae R2 Half of slot width T Programming width of cut ae Actual width of cut SUTA
Y (+) Y HSS-HSS/CO DRILLS X (+)
T G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE
